.034 Coaxial Cable – 50 Ω MIL-DTL-17 Copper

M17/154-00001

© EZ Form Cable Inc. All rights reserved.

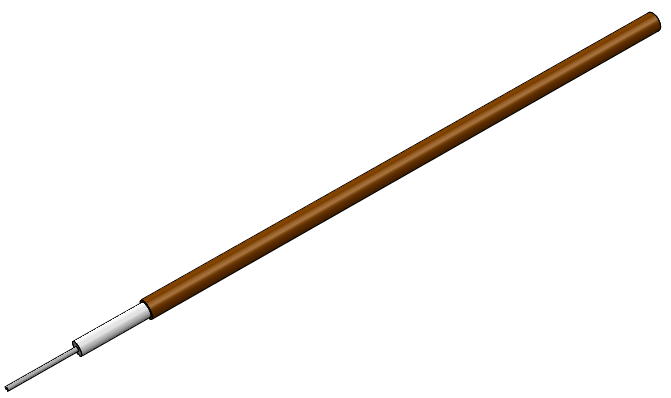

⌀.034" MIL-DTL-17 Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0080 in
  • Dielectric Diameter
    0.0370 in
  • Outer Conductor Diameter
    0.0340 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −40 °C
  • Maximum Temperature
    +100 °C
  • Inside Bend Radius (Minimum)
    0.125 in
  • Weight
    0.26 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±3.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    750 VRMS
    max
  • Maximum Operating Frequency
    20 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
42 db
1.0 GHz
60 db
3.0 GHz
100 db
5.0 GHz
140 db
10.0 GHz
190 db
20.0 GHz
280 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
14 W
1.0 GHz
10 W
3.0 GHz
6 W
5.0 GHz
4.5 W
10.0 GHz
3.1 W
20.0 GHz
2 W

.034 Coaxial Cable – 50 Ω MIL-DTL-17 Copper

M17/154-00001

⌀.034" MIL-DTL-17 Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

feet
Add to Quote
Datasheet

EZ Form offers 27 copper and aluminum jacketed semi-rigid cables qualified to MIL-DTL-17. These cables meet or exceed the Mil specification and are available in a variety of sizes and finishes.

To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0080 in
  • Dielectric Diameter
    0.0370 in
  • Outer Conductor Diameter
    0.0340 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −40 °C
  • Maximum Temperature
    +100 °C
  • Inside Bend Radius (Minimum)
    0.125 in
  • Weight
    0.26 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±3.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    750 VRMS
    max
  • Maximum Operating Frequency
    20 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
42 db
1.0 GHz
60 db
3.0 GHz
100 db
5.0 GHz
140 db
10.0 GHz
190 db
20.0 GHz
280 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
14 W
1.0 GHz
10 W
3.0 GHz
6 W
5.0 GHz
4.5 W
10.0 GHz
3.1 W
20.0 GHz
2 W
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
42 db
1.0 GHz
60 db
3.0 GHz
100 db
5.0 GHz
140 db
10.0 GHz
190 db
20.0 GHz
280 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
14 W
1.0 GHz
10 W
3.0 GHz
6 W
5.0 GHz
4.5 W
10.0 GHz
3.1 W
20.0 GHz
2 W
