.141 Coaxial Cable – 50 Ω Semi-Rigid Copper-Lined Stainless Steel – Low-Loss

EZ-141-LA-SSCL

© EZ Form Cable Inc. All rights reserved.

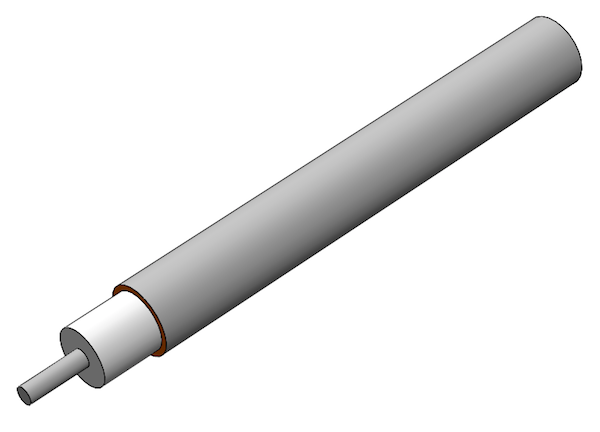

⌀.141" Semi-Rigid Copper-Lined Stainless Steel Outer Conductor, SPC Center Conductor, LD PTFE Dielectric, 50 Ω. Low-Loss.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0403 in
  • Dielectric Diameter
    0.1175 in
  • Outer Conductor Diameter
    0.1410 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    LD PTFE
  • Outer Conductor Material
    Copper-lined, Stainless Steel
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +200 °C
  • Inside Bend Radius (Minimum)
    0.500 in
  • Weight
    3.25 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.0 Ω
  • Velocity of Propagation
    76.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    5000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1900 VRMS
    max
  • Maximum Operating Frequency
    36 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
7.5 db
1.0 GHz
10 db
5.0 GHz
24 db
10.0 GHz
34 db
18.0 GHz
46 db
26.5 GHz
56 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
820 W
1.0 GHz
580 W
5.0 GHz
240 W
10.0 GHz
170 W
18.0 GHz
130 W
26.5 GHz
110 W

.141 Coaxial Cable – 50 Ω Semi-Rigid Copper-Lined Stainless Steel – Low-Loss

EZ-141-LA-SSCL

⌀.141" Semi-Rigid Copper-Lined Stainless Steel Outer Conductor, SPC Center Conductor, LD PTFE Dielectric, 50 Ω. Low-Loss.

feet
Add to Quote
Datasheet

EZ Form stainless steel jacketed semi-rigid cables were developed for applications where low thermal heat transfer is required. Typical applications include cryogenic feed cables and RF ablation medical instruments. These cables are available with solid PTFE or microporous dielectrics. Copper lined (CL) versions are available for non-cryogenic applications that require traditional electrical performance. Standard connectors can be attached to these cables by specifying tin plating on the outer conductor.

Additional information unique to microporous dielectrics:

Phase Vs. Temperature

Attenuation Vs. Temperature

See more:

low-loss

Specifications

Dimensions

  • Center Conductor Diameter
    0.0403 in
  • Dielectric Diameter
    0.1175 in
  • Outer Conductor Diameter
    0.1410 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    LD PTFE
  • Outer Conductor Material
    Copper-lined, Stainless Steel
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +200 °C
  • Inside Bend Radius (Minimum)
    0.500 in
  • Weight
    3.25 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.0 Ω
  • Velocity of Propagation
    76.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    5000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1900 VRMS
    max
  • Maximum Operating Frequency
    36 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
7.5 db
1.0 GHz
10 db
5.0 GHz
24 db
10.0 GHz
34 db
18.0 GHz
46 db
26.5 GHz
56 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
820 W
1.0 GHz
580 W
5.0 GHz
240 W
10.0 GHz
170 W
18.0 GHz
130 W
26.5 GHz
110 W
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
7.5 db
1.0 GHz
10 db
5.0 GHz
24 db
10.0 GHz
34 db
18.0 GHz
46 db
26.5 GHz
56 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
820 W
1.0 GHz
580 W
5.0 GHz
240 W
10.0 GHz
170 W
18.0 GHz
130 W
26.5 GHz
110 W
