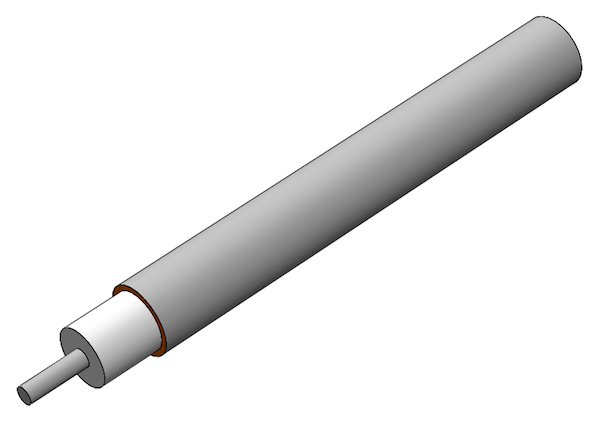

⌀.141" Semi-Rigid Copper-Lined Stainless Steel Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0362 in
  • Dielectric Diameter
    0.1175 in
  • Outer Conductor Diameter
    0.1410 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper-lined, Stainless Steel
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +200 °C
  • Inside Bend Radius (Minimum)
    0.250 in
  • Weight
    3.50 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    5000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1900 VRMS
    max
  • Maximum Operating Frequency
    34 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
7.6 db
1.0 GHz
11.1 db
5.0 GHz
28.1 db
10.0 GHz
43.4 db
18.0 GHz
63.6 db
26.5 GHz
82.8 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
600 W
1.0 GHz
450 W
5.0 GHz
180 W
10.0 GHz
120 W
18.0 GHz
73 W
26.5 GHz
70 W

.141 Coaxial Cable – 50 Ω Semi-Rigid Copper-Lined Stainless Steel

EZ-141-SSCL

⌀.141" Semi-Rigid Copper-Lined Stainless Steel Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

feet
Add to Quote
Datasheet

EZ Form stainless steel jacketed semi-rigid cables were developed for applications where low thermal heat transfer is required. Typical applications include cryogenic feed cables and RF ablation medical instruments. These cables are available with solid PTFE or microporous dielectrics. Copper lined (CL) versions are available for non-cryogenic applications that require traditional electrical performance. Standard connectors can be attached to these cables by specifying tin plating on the outer conductor.
