.325 Coaxial Cable – 50 Ω Semi-Rigid Aluminum – Non-Magnetic

EZ-325-AL

© EZ Form Cable Inc. All rights reserved.

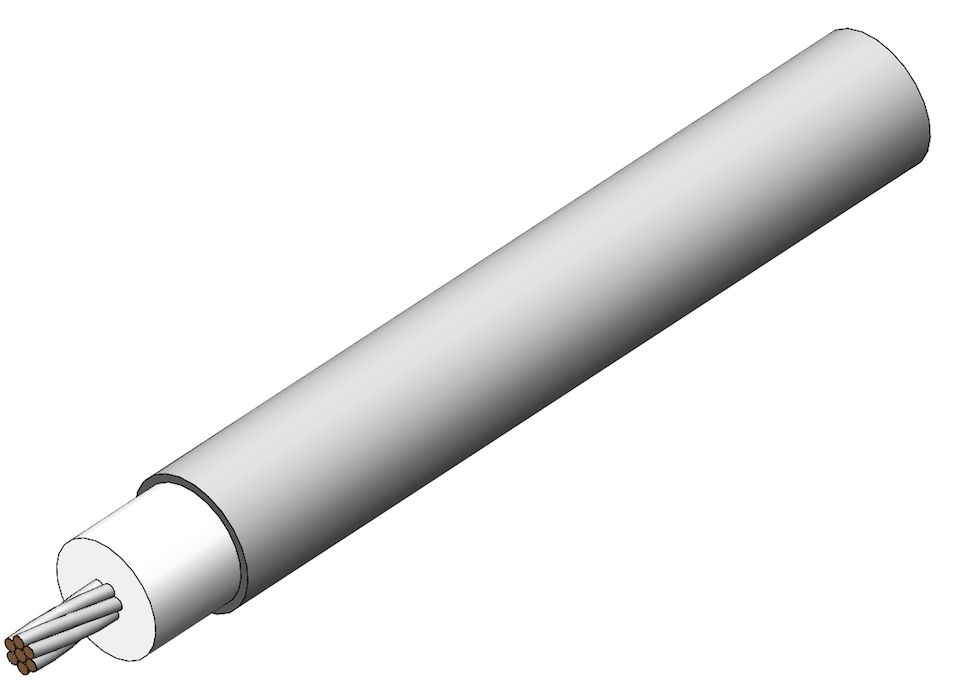

⌀.325" Semi-Rigid Aluminum Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω. Non-Magnetic.

Specifications

Dimensions

  • Center Conductor Diameter
    7 × 0.0312 in
  • Dielectric Diameter
    0.2850 in
  • Outer Conductor Diameter
    0.3250 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Aluminum
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +90 °C
  • Inside Bend Radius (Minimum)
    0.750 in
  • Weight
    14.50 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±2.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    7500 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    3000 VRMS
    max
  • Maximum Operating Frequency
    14 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
3.5 db
1.0 GHz
5.2 db
5.0 GHz
13.8 db
10.0 GHz
22 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
1700 W
1.0 GHz
1150 W
5.0 GHz
440 W
10.0 GHz
284 W

.325 Coaxial Cable – 50 Ω Semi-Rigid Aluminum – Non-Magnetic

EZ-325-AL

⌀.325" Semi-Rigid Aluminum Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω. Non-Magnetic.

feet
Add to Quote
Datasheet

Aluminum jacketed semi-rigid cables manufactured by EZ Form are 40% lighter than copper jacketed cables yet offer the same electrical performance, making them ideal for weight sensitive applications. Standard “direct solder” attachment connectors can be used with these cables by specifying tin or silver outer conductor plating.

To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.
