.034 Coaxial Cable – 50 Ω Semi-Rigid Copper

EZ-34

© EZ Form Cable Inc. All rights reserved.

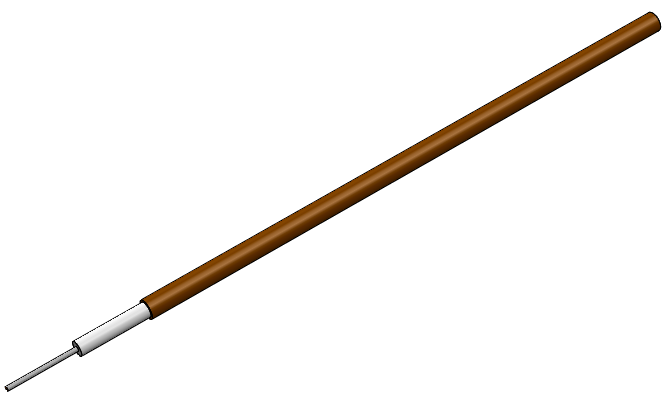

⌀.034" Semi-Rigid Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0080 in
  • Dielectric Diameter
    0.0260 in
  • Outer Conductor Diameter
    0.0340 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +100 °C
  • Inside Bend Radius (Minimum)
    0.050 in
  • Weight
    0.21 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±3.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    750 VRMS
    max
  • Maximum Operating Frequency
    153 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
33.5 db
1.0 GHz
47.5 db
5.0 GHz
110 db
10.0 GHz
159 db
18.0 GHz
225 db
26.5 GHz
265 db
40.0 GHz
333 db
50.0 GHz
377 db
65.0 GHz
437 db
90.0 GHz
525 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
35 W
1.0 GHz
25 W
5.0 GHz
11 W
10.0 GHz
8 W
18.0 GHz
6 W
26.5 GHz
5 W
40.0 GHz
3.7 W
50.0 GHz
3.3 W
65.0 GHz
2.8 W
90.0 GHz
2.4 W

.034 Coaxial Cable – 50 Ω Semi-Rigid Copper

EZ-34

⌀.034" Semi-Rigid Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

feet
Add to Quote
Datasheet

Copper jacketed semi-rigid cables manufactured by EZ Form offer 100% shielding and are easily formed into custom shapes using standard tooling. A wide variety of standard connectors are available for these cables.
