.034 Coaxial Cable – 17 Ω Semi-Rigid Copper – Non-Magnetic, Special Impedance

EZ-34-17

© EZ Form Cable Inc. All rights reserved.

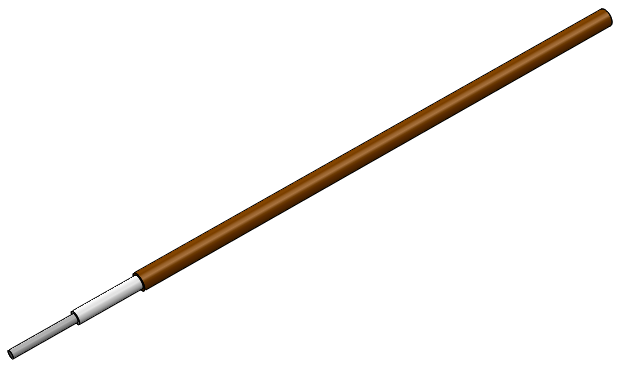

⌀.034" Semi-Rigid Copper Outer Conductor, SPC Center Conductor, PTFE Dielectric, 17 Ω. Non-Magnetic, Special Impedance.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0159 in
  • Dielectric Diameter
    0.0250 in
  • Outer Conductor Diameter
    0.0340 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +150 °C
  • Inside Bend Radius (Minimum)
    0.125 in
  • Weight
    0.27 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    17.0 Ω
  • Nominal Impedance Margin
    ±3.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    500 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    200 VRMS
    max
  • Maximum Operating Frequency
    127 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
59.5 db
1.0 GHz
84.6 db
5.0 GHz
191.9 db
10.0 GHz
275 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
27 W
1.0 GHz
19 W
5.0 GHz
8.4 W
10.0 GHz
5.9 W
