.034 Coaxial Cable – 50 Ω Semi-Rigid Stainless Steel with S.S. Center Conductor

EZ-34-SS-SS

© EZ Form Cable Inc. All rights reserved.

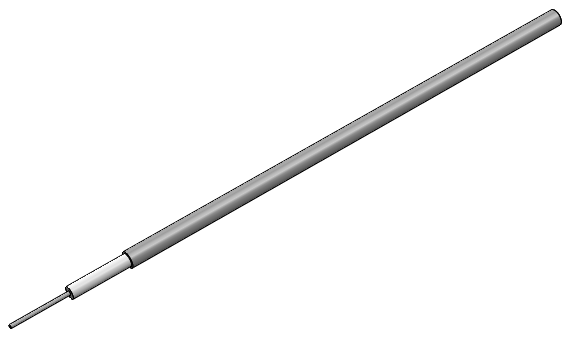

⌀.034" Semi-Rigid Stainless Steel Outer Conductor, SS Center Conductor, PTFE Dielectric, 50 Ω.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0080 in
  • Dielectric Diameter
    0.0260 in
  • Outer Conductor Diameter
    0.0340 in

Materials

  • Center Conductor Material
    SS
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Stainless Steel
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +175 °C
  • Inside Bend Radius (Minimum)
    0.250 in
  • Weight
    0.21 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±3.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    800 VRMS
    max
  • Maximum Operating Frequency
    153 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
225 db
1.0 GHz
320 db
5.0 GHz
715 db
10.0 GHz
1000 db
18.0 GHz
1350 db
26.5 GHz
1650 db
40.0 GHz
2040 db
50.0 GHz
2290 db
65.0 GHz
2620 db
90.0 GHz
3090 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
8 W
1.0 GHz
6 W
5.0 GHz
2.5 W
10.0 GHz
1.8 W
18.0 GHz
1.4 W
26.5 GHz
1.1 W
40.0 GHz
0.9 W
50.0 GHz
0.8 W
65.0 GHz
0.7 W
90.0 GHz
0.6 W

.034 Coaxial Cable – 50 Ω Semi-Rigid Stainless Steel with S.S. Center Conductor

EZ-34-SS-SS

⌀.034" Semi-Rigid Stainless Steel Outer Conductor, SS Center Conductor, PTFE Dielectric, 50 Ω.

feet
Add to Quote
Datasheet

EZ Form stainless steel jacketed semi-rigid cables were developed for applications where low thermal heat transfer is required. Typical applications include cryogenic feed cables and RF ablation medical instruments. Copper lined (CL) versions are available for non-cryogenic applications that require traditional electrical performance. Standard connectors can be attached to these cables by specifying tin plating on the outer conductor.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0080 in
  • Dielectric Diameter
    0.0260 in
  • Outer Conductor Diameter
    0.0340 in

Materials

  • Center Conductor Material
    SS
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Stainless Steel
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +175 °C
  • Inside Bend Radius (Minimum)
    0.250 in
  • Weight
    0.21 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±3.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    800 VRMS
    max
  • Maximum Operating Frequency
    153 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
225 db
1.0 GHz
320 db
5.0 GHz
715 db
10.0 GHz
1000 db
18.0 GHz
1350 db
26.5 GHz
1650 db
40.0 GHz
2040 db
50.0 GHz
2290 db
65.0 GHz
2620 db
90.0 GHz
3090 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
8 W
1.0 GHz
6 W
5.0 GHz
2.5 W
10.0 GHz
1.8 W
18.0 GHz
1.4 W
26.5 GHz
1.1 W
40.0 GHz
0.9 W
50.0 GHz
0.8 W
65.0 GHz
0.7 W
90.0 GHz
0.6 W
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
225 db
1.0 GHz
320 db
5.0 GHz
715 db
10.0 GHz
1000 db
18.0 GHz
1350 db
26.5 GHz
1650 db
40.0 GHz
2040 db
50.0 GHz
2290 db
65.0 GHz
2620 db
90.0 GHz
3090 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
8 W
1.0 GHz
6 W
5.0 GHz
2.5 W
10.0 GHz
1.8 W
18.0 GHz
1.4 W
26.5 GHz
1.1 W
40.0 GHz
0.9 W
50.0 GHz
0.8 W
65.0 GHz
0.7 W
90.0 GHz
0.6 W
