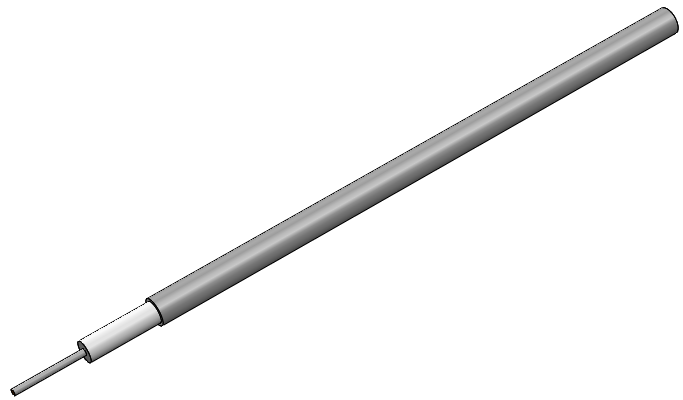

.047 Coaxial Cable – 50 Ω Semi-Rigid Tin-Plated Copper

EZ-47-TP/M17

© EZ Form Cable Inc. All rights reserved.

⌀.047" Semi-Rigid Tin-Plated Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0113 in
  • Dielectric Diameter
    0.0370 in
  • Outer Conductor Diameter
    0.0470 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • Outer Conductor Plating Material
    Tin
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +100 °C
  • Inside Bend Radius (Minimum)
    0.050 in
  • Weight
    0.42 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±2.5 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1000 VRMS
    max
  • Maximum Operating Frequency
    109 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
24 db
1.0 GHz
34 db
5.0 GHz
79 db
10.0 GHz
114 db
18.0 GHz
156 db
26.5 GHz
195 db
40.0 GHz
245 db
50.0 GHz
278 db
65.0 GHz
323 db
90.0 GHz
390 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
80 W
1.0 GHz
55 W
5.0 GHz
25 W
10.0 GHz
17 W
18.0 GHz
12 W
26.5 GHz
10 W
40.0 GHz
8 W
50.0 GHz
7 W
65.0 GHz
6 W
90.0 GHz
5 W

.047 Coaxial Cable – 50 Ω Semi-Rigid Tin-Plated Copper

EZ-47-TP/M17

⌀.047" Semi-Rigid Tin-Plated Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

feet
Add to Quote
Datasheet

Copper jacketed semi-rigid cables manufactured by EZ Form offer 100% shielding and are easily formed into custom shapes using standard tooling. A wide variety of standard connectors are available for these cables.

To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.
