.047 Coaxial Cable – 50 Ω Semi-Rigid Tin-Plated Copper – Low-Loss, Non-Magnetic, Tape-Wrapped

EZ-47-WP-TP

© EZ Form Cable Inc. All rights reserved.

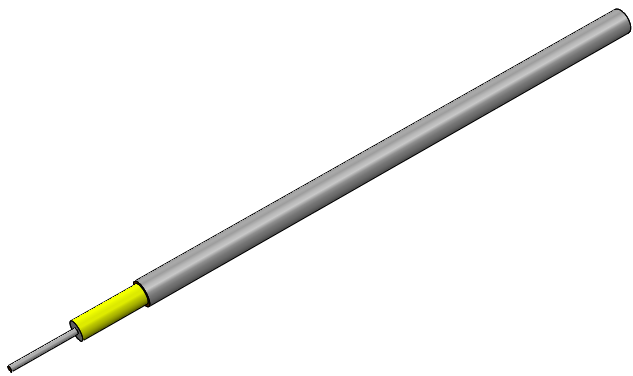

⌀.047" Semi-Rigid Tin-Plated Copper Outer Conductor, SPC Center Conductor, PTFE Tape Dielectric, 50 Ω. Low-Loss, Non-Magnetic, Tape-Wrapped.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0126 in
  • Dielectric Diameter
    0.0370 in
  • Outer Conductor Diameter
    0.0470 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    PTFE Tape
  • Outer Conductor Material
    Copper
  • Outer Conductor Plating Material
    Tin
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +200 °C
  • Inside Bend Radius (Minimum)
    0.125 in
  • Weight
    0.42 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±2.5 Ω
  • Velocity of Propagation
    83.00%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1000 VRMS
    max
  • Maximum Operating Frequency
    125 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
23 db
1.0 GHz
35 db
5.0 GHz
75 db
10.0 GHz
110 db
18.0 GHz
146 db
26.5 GHz
180 db
40.0 GHz
210 db
50.0 GHz
235 db
65.0 GHz
270 db
90.0 GHz
320 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
110 W
1.0 GHz
75 W
5.0 GHz
32 W
10.0 GHz
21 W
18.0 GHz
16 W
26.5 GHz
13 W
40.0 GHz
12 W
50.0 GHz
11 W
65.0 GHz
10 W
90.0 GHz
9 W

.047 Coaxial Cable – 50 Ω Semi-Rigid Tin-Plated Copper – Low-Loss, Non-Magnetic, Tape-Wrapped

EZ-47-WP-TP

⌀.047" Semi-Rigid Tin-Plated Copper Outer Conductor, SPC Center Conductor, PTFE Tape Dielectric, 50 Ω. Low-Loss, Non-Magnetic, Tape-Wrapped.

feet
Add to Quote
Datasheet

EZ Form copper jacketed semi-rigid WP cables feature a tape-wrapped dielectric, that facilitates lower attenuation and higher operating temperatures when compared to solid PTFE semi-rigid cables.
