.07 Coaxial Cable – 50 Ω Semi-Rigid Silver-Plated Copper – Non-Magnetic

EZ-70-CU-SP

© EZ Form Cable Inc. All rights reserved.

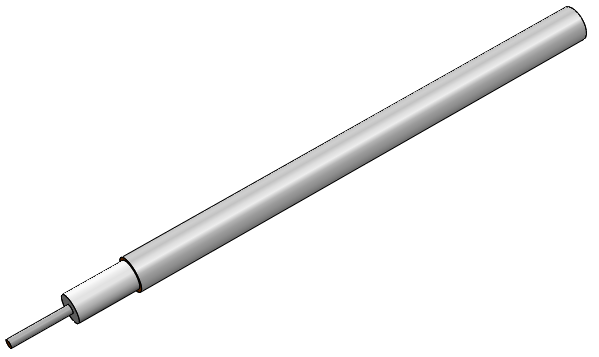

⌀.07" Semi-Rigid Silver-Plated Copper Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω. Non-Magnetic.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0179 in
  • Dielectric Diameter
    0.0580 in
  • Outer Conductor Diameter
    0.0700 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • Outer Conductor Plating Material
    Silver
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +100 °C
  • Inside Bend Radius (Minimum)
    0.125 in
  • Weight
    0.85 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±2.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    4000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1600 VRMS
    max
  • Maximum Operating Frequency
    68 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
15 db
1.0 GHz
21 db
5.0 GHz
51 db
10.0 GHz
75 db
18.0 GHz
108 db
26.5 GHz
130 db
40.0 GHz
165 db
50.0 GHz
189 db
65.0 GHz
222 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
124 W
1.0 GHz
86 W
5.0 GHz
37 W
10.0 GHz
25 W
18.0 GHz
18 W
26.5 GHz
15 W
40.0 GHz
12 W
50.0 GHz
10 W
65.0 GHz
9 W

.07 Coaxial Cable – 50 Ω Semi-Rigid Silver-Plated Copper – Non-Magnetic

EZ-70-CU-SP

⌀.07" Semi-Rigid Silver-Plated Copper Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω. Non-Magnetic.

feet
Add to Quote
Datasheet

Copper jacketed semi-rigid cables manufactured by EZ Form offer 100% shielding and are easily formed into custom shapes using standard tooling. A wide variety of standard connectors are available for these cables.

To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.
