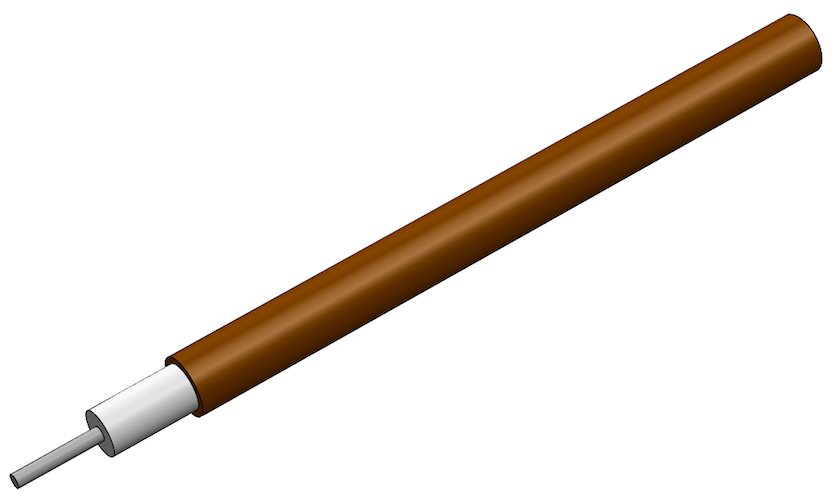

.0865 Coaxial Cable – 50 Ω Semi-Rigid Copper – PCB Test

EZ-86-1

© EZ Form Cable Inc. All rights reserved.

⌀.0865" Semi-Rigid Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω. Raw Cable Variant for PCB Testing.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0201 in
  • Dielectric Diameter
    0.0660 in
  • Outer Conductor Diameter
    0.0865 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +125 °C
  • Inside Bend Radius (Minimum)
    1.250 in
  • Weight
    1.53 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    5000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1500 VRMS
    max
  • Maximum Operating Frequency
    60 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
13.2 db
1.0 GHz
19 db
5.0 GHz
45.8 db
10.0 GHz
68.3 db
18.0 GHz
97.2 db
26.5 GHz
123.5 db
40.0 GHz
160.6 db
50.0 GHz
185.9 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
180 W
1.0 GHz
130 W
5.0 GHz
54 W
10.0 GHz
35 W
18.0 GHz
20 W

.0865 Coaxial Cable – 50 Ω Semi-Rigid Copper – PCB Test

EZ-86-1

⌀.0865" Semi-Rigid Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω. Raw Cable Variant for PCB Testing.

feet
Add to Quote
Datasheet

Copper jacketed semi-rigid cables manufactured by EZ Form offer 100% shielding and are easily formed into custom shapes using standard tooling. A wide variety of standard connectors are available for these cables.

To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.
