.0865 Coaxial Cable – 50 Ω Semi-Rigid Tin-Lead-Plated Aluminum – Non-Magnetic

EZ-86-AL-CU-TL

© EZ Form Cable Inc. All rights reserved.

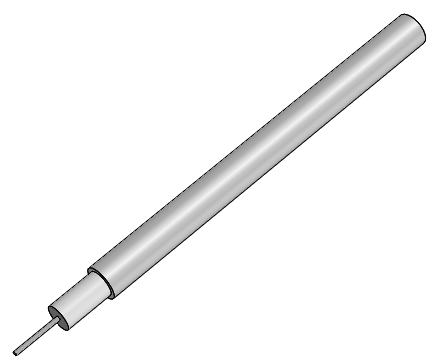

⌀.0865" Semi-Rigid Tin-Lead-Plated Aluminum Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω. Non-Magnetic.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0201 in
  • Dielectric Diameter
    0.0660 in
  • Outer Conductor Diameter
    0.0865 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Aluminum
  • Outer Conductor Plating Material
    Tin-Lead
  • RoHS Compliant
    No

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +125 °C
  • Inside Bend Radius (Minimum)
    0.070 in
  • Weight
    0.80 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.5 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    5000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1500 VRMS
    max
  • Maximum Operating Frequency
    61 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
14.5 db
1.0 GHz
21 db
5.0 GHz
48.5 db
10.0 GHz
72 db
18.0 GHz
105 db
26.5 GHz
127.5 db
40.0 GHz
160.6 db
50.0 GHz
185.9 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
190 W
1.0 GHz
130 W
5.0 GHz
59 W
10.0 GHz
41 W
18.0 GHz
30 W
26.5 GHz
25 W
40.0 GHz
18 W
50.0 GHz
15 W

.0865 Coaxial Cable – 50 Ω Semi-Rigid Tin-Lead-Plated Aluminum – Non-Magnetic

EZ-86-AL-CU-TL

⌀.0865" Semi-Rigid Tin-Lead-Plated Aluminum Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω. Non-Magnetic.

feet
Add to Quote
Datasheet

Aluminum jacketed semi-rigid cables manufactured by EZ Form are 40% lighter than copper jacketed cables yet offer the same electrical performance, making them ideal for weight sensitive applications. Standard “direct solder” attachment connectors can be used with these cables by specifying tin or silver outer conductor plating.
