.0865 Coaxial Cable – 50 Ω Semi-Rigid Stainless Steel (SPC Center)

EZ-86-CU-SS

© EZ Form Cable Inc. All rights reserved.

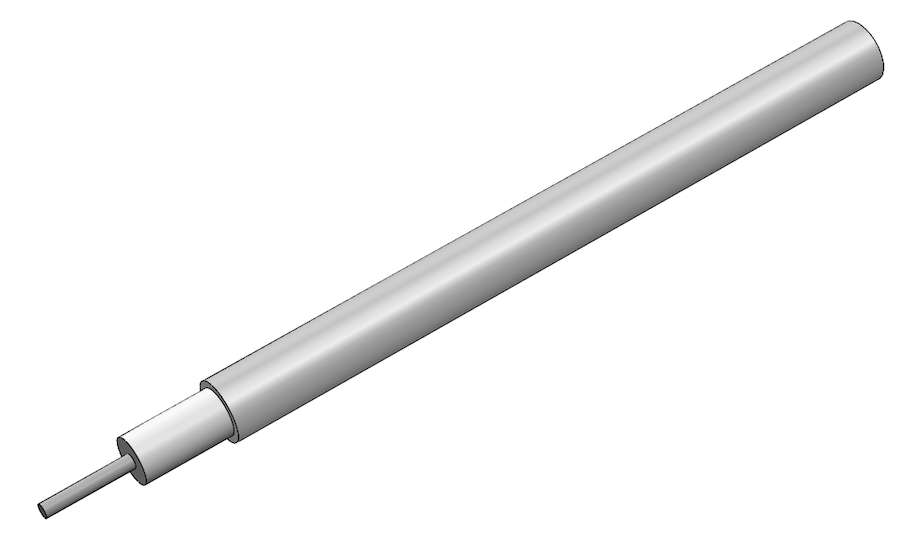

⌀.0865" Semi-Rigid Stainless Steel Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0201 in
  • Dielectric Diameter
    0.0660 in
  • Outer Conductor Diameter
    0.0865 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Stainless Steel
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +200 °C
  • Inside Bend Radius (Minimum)
    0.250 in
  • Weight
    1.30 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.5 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    5000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1900 VRMS
    max
  • Maximum Operating Frequency
    61 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
31.2 db
1.0 GHz
44.4 db
5.0 GHz
101.5 db
10.0 GHz
146 db
18.0 GHz
199.7 db
26.5 GHz
246.2 db
40.0 GHz
308.7 db
50.0 GHz
349.5 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
142.7 W
1.0 GHz
100.5 W
5.0 GHz
44.2 W
10.0 GHz
30.9 W
18.0 GHz
22.7 W
26.5 GHz
18.5 W
40.0 GHz
14.8 W
50.0 GHz
13.1 W

.0865 Coaxial Cable – 50 Ω Semi-Rigid Stainless Steel (SPC Center)

EZ-86-CU-SS

⌀.0865" Semi-Rigid Stainless Steel Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω.

feet
Add to Quote
Datasheet

EZ Form stainless steel jacketed semi-rigid cables were developed for applications where low thermal heat transfer is required. Typical applications include cryogenic feed cables and RF ablation medical instruments. These cables are available with solid PTFE, microporous, and EZ Form Phase-Stable dielectrics. Copper lined (CL) versions are available for non-cryogenic applications that require traditional electrical performance. Standard connectors can be attached to these cables by specifying tin plating on the outer conductor.
