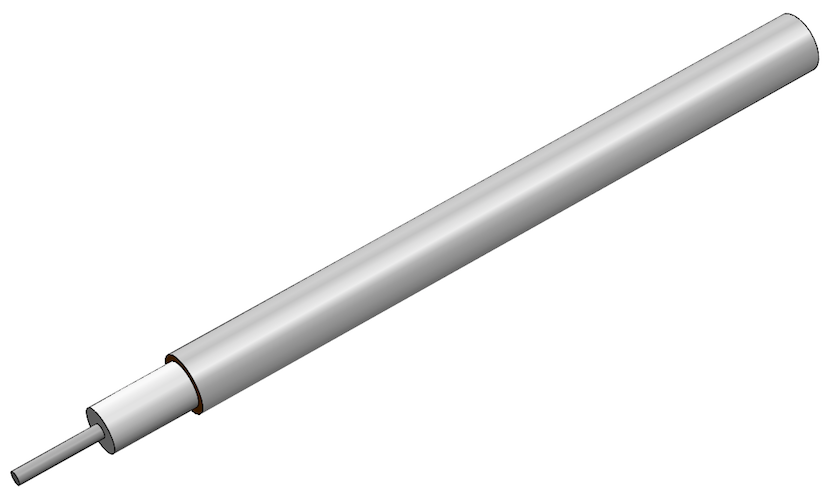

.0865 Coaxial Cable – 50 Ω Semi-Rigid Tin-Lead-Plated Copper – Low-Loss

EZ-86-LA-TL

© EZ Form Cable Inc. All rights reserved.

⌀.0865" Semi-Rigid Tin-Lead-Plated Copper Outer Conductor, SPC Center Conductor, LD PTFE Dielectric, 50 Ω. Low-Loss.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0226 in
  • Dielectric Diameter
    0.0660 in
  • Outer Conductor Diameter
    0.0865 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    LD PTFE
  • Outer Conductor Material
    Copper
  • Outer Conductor Plating Material
    Tin-Lead
  • RoHS Compliant
    No

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +250 °C
  • Inside Bend Radius (Minimum)
    0.250 in
  • Weight
    1.50 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.5 Ω
  • Velocity of Propagation
    76.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2500 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1500 VRMS
    max
  • Maximum Operating Frequency
    64 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
11.6 db
1.0 GHz
16.5 db
5.0 GHz
37.3 db
10.0 GHz
53.3 db
18.0 GHz
72.4 db
26.5 GHz
88.7 db
40.0 GHz
110.4 db
50.0 GHz
124.4 db
65.0 GHz
143.2 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
340 W
1.0 GHz
240 W
5.0 GHz
105 W
10.0 GHz
73 W
18.0 GHz
54 W
26.5 GHz
44 W
40.0 GHz
36 W
50.0 GHz
32 W
65.0 GHz
28 W

.0865 Coaxial Cable – 50 Ω Semi-Rigid Tin-Lead-Plated Copper – Low-Loss

EZ-86-LA-TL

⌀.0865" Semi-Rigid Tin-Lead-Plated Copper Outer Conductor, SPC Center Conductor, LD PTFE Dielectric, 50 Ω. Low-Loss.

feet
Add to Quote
Datasheet

EZ Form copper jacketed semi-rigid LA (Low Attenuation) cables feature a microporous dielectric, that facilitates lower attenuation, higher operating temperatures and greater phase stability vs. temperature when compared to solid PTFE semi-rigid cables.

To avoid oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.

Additional information unique to microporous dielectrics:

Phase Vs. Temperature

Attenuation Vs. Temperature
