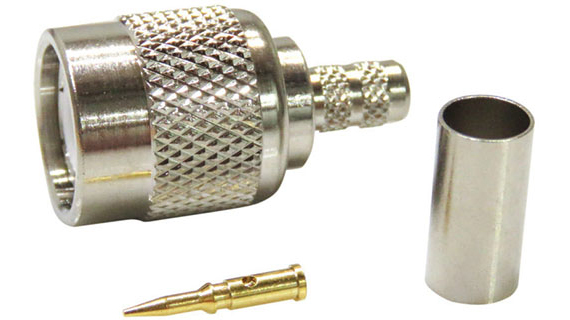

TNC Connector – Straight Plug to .078 Cable-Crimp

701039TNC

TNC Plug (Male) to ⌀.078" Cable (Crimp), Straight Float.

Add to Quote

TNC Straight Plug Crimp Type for RG174, RG316 Cable

Specifications

  • Outer Conductor Diameter
    0.0780 in
  • Interface
    TNC
  • Gender
    Plug
  • Orientation
    Straight
  • Mounting Style
    Float
  • Termination Style
    Cable-Crimp
  • Frequency
    11 GHz
  • Impedance
    50 Ω

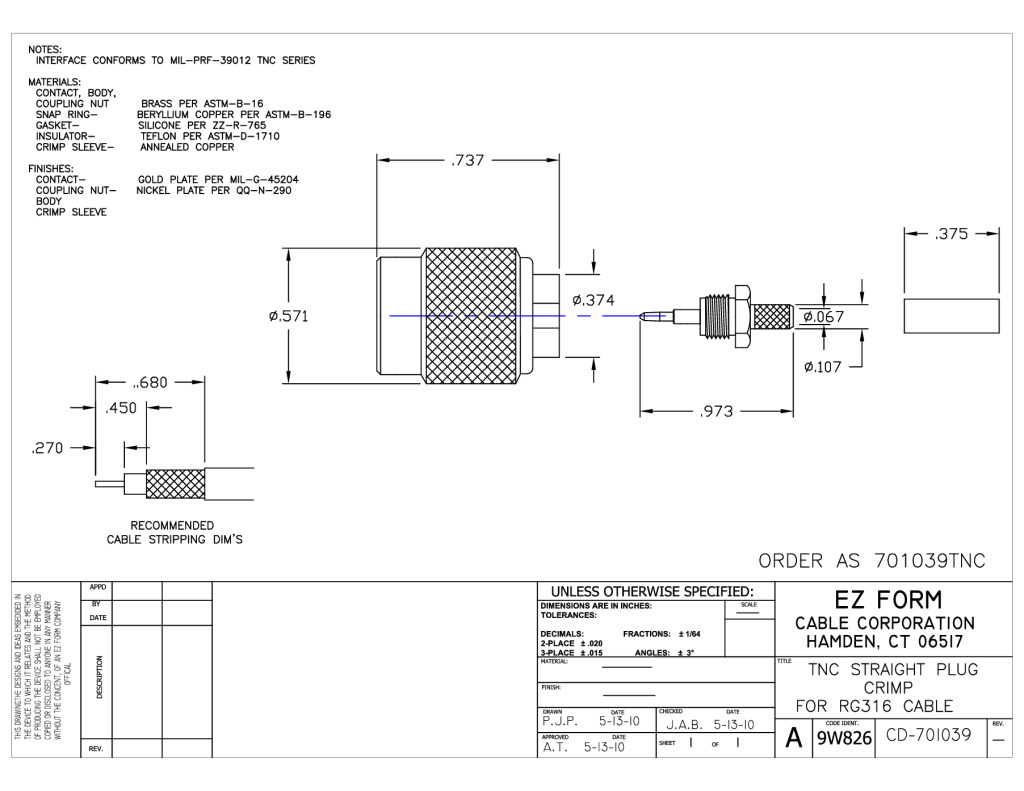

Datasheet

701039tnc_cd.pdf
TNC Connector – Straight Plug to .078 Cable-Crimp
Add to Quote
