SMP Connector – R/A Jack to .047 Cable-Solder – Captive Contact

701400-147

SMP Jack (Female) to ⌀.047" Cable (Solder), Right Angle Float. With Captive Contact.

Add to Quote

SMP Right Angle Jack, Direct Solder, for EZ-47 (.047 Dia S/R)

See more:

captive contact

Specifications

  • Outer Conductor Diameter
    0.0470 in
  • Interface
    SMP
  • Gender
    Jack
  • Orientation
    Right Angle
  • Mounting Style
    Float
  • Termination Style
    Cable-Solder
  • Frequency
    18 GHz
  • Impedance
    50 Ω

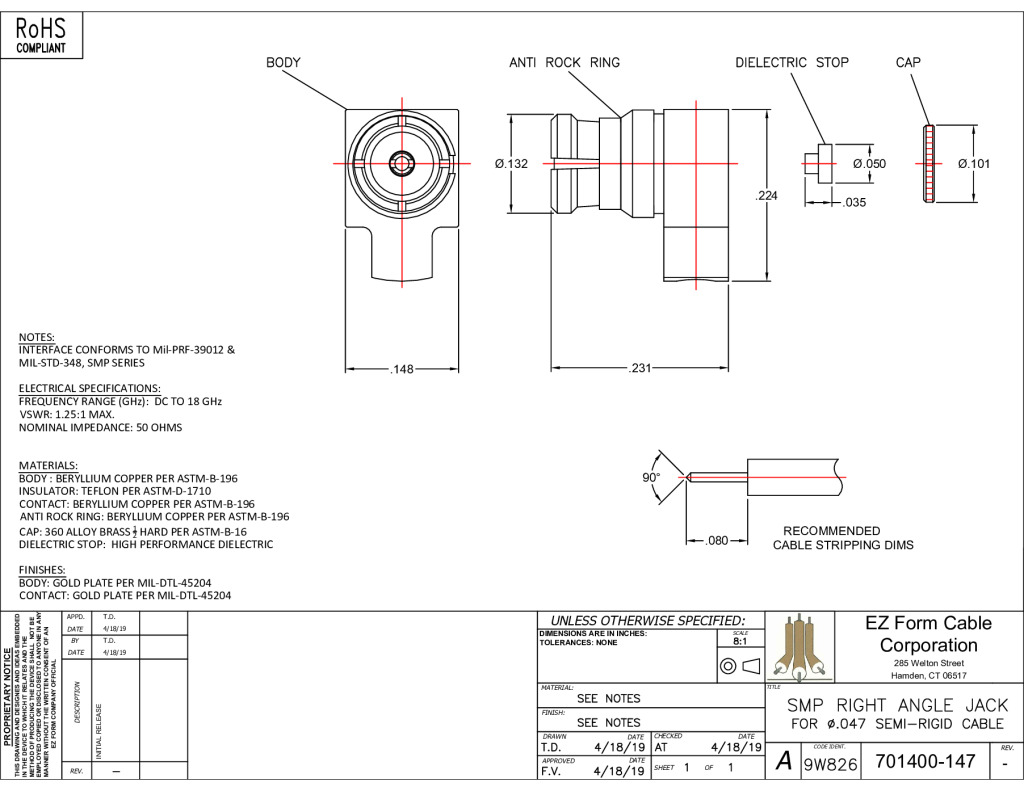

Datasheet

701400-147.pdf
SMP Connector – R/A Jack to .047 Cable-Solder – Captive Contact
Add to Quote
EZ Form Cable
