MCX Connector – Bulkhead Jack to .086 Cable-Solder

701960-086MCX

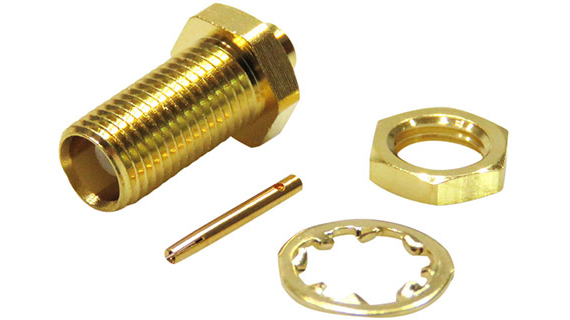

MCX Jack (Female) to ⌀.086" Cable (Solder), Bulkhead Mount.

Add to Quote

MCX Bulkhead Jack, Direct Solder, for EZ-86, RG405 Cable

Specifications

  • Outer Conductor Diameter
    0.0860 in
  • Interface
    MCX
  • Gender
    Jack
  • Orientation
    Straight
  • Mounting Style
    Bulkhead
  • Termination Style
    Cable-Solder
  • Frequency
    6 GHz
  • Impedance
    50 Ω

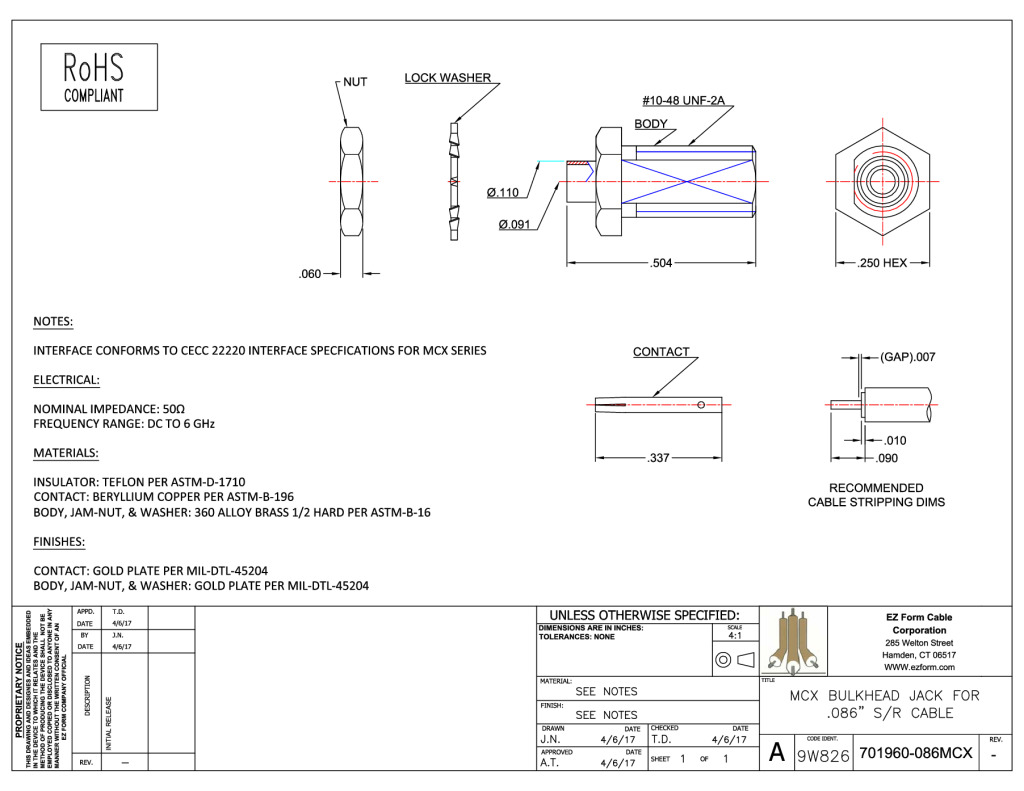

Datasheet

701960-086mcx_cd.pdf
MCX Connector – Bulkhead Jack to .086 Cable-Solder
Add to Quote
