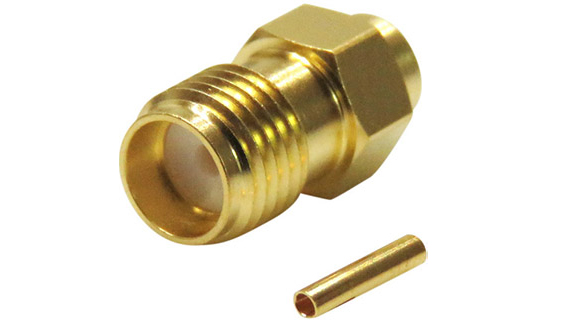

SMA Connector – Straight Jack to .141 Cable-Solder

705517-001SMA

SMA Jack (Female) to ⌀.141" Cable (Solder), Straight Float.

Add to Quote

SMA Straight Female, Direct Solder for EZ-141, RG402 Cable

Specifications

  • Outer Conductor Diameter
    0.1410 in
  • Interface
    SMA
  • Gender
    Jack
  • Orientation
    Straight
  • Mounting Style
    Float
  • Termination Style
    Cable-Solder
  • Frequency
    18 GHz
  • Impedance
    50 Ω

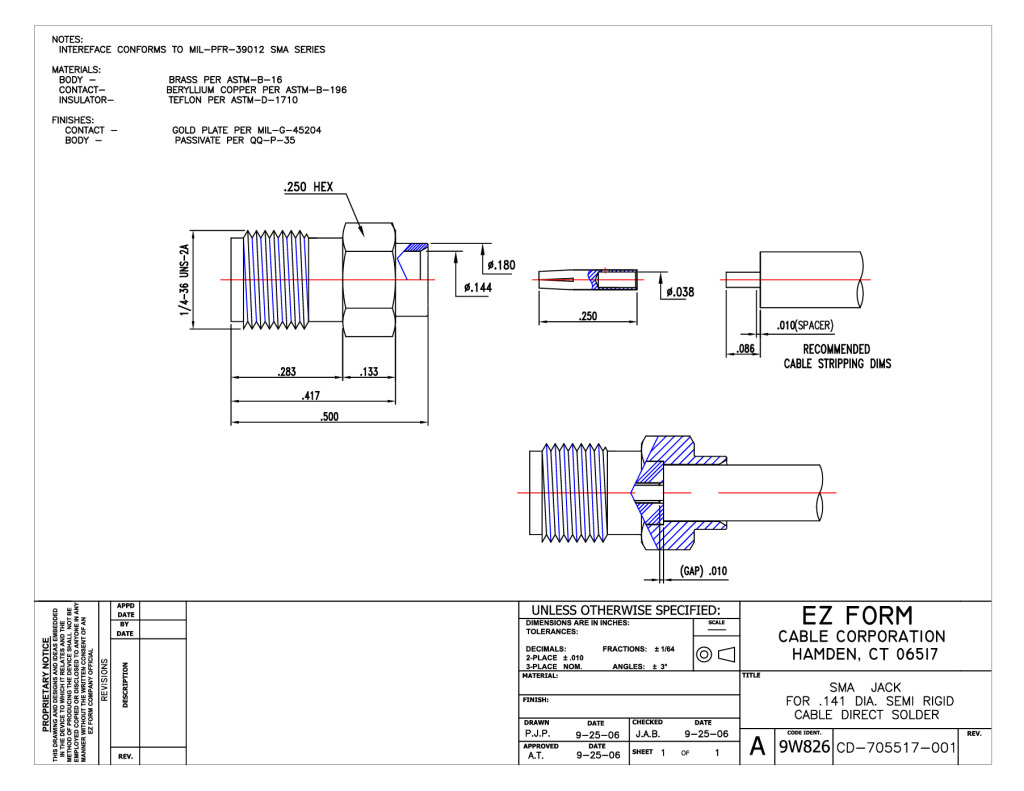

Datasheet

705517-001sma_cd.pdf
SMA Connector – Straight Jack to .141 Cable-Solder
Add to Quote
EZ Form Cable
