SMA Connector – Straight Jack to .141 Cable-Solder – Captive Contact

705517-301

SMA Jack (Female) to ⌀.141" Cable (Solder), Straight Float. With Captive Contact.

Add to Quote

SMA Straight Female, Direct Solder for EZ-141, RG402

See more:

captive contact

Specifications

  • Outer Conductor Diameter
    0.1410 in
  • Interface
    SMA
  • Gender
    Jack
  • Orientation
    Straight
  • Mounting Style
    Float
  • Termination Style
    Cable-Solder
  • Frequency
    12.4 GHz
  • Impedance
    50 Ω

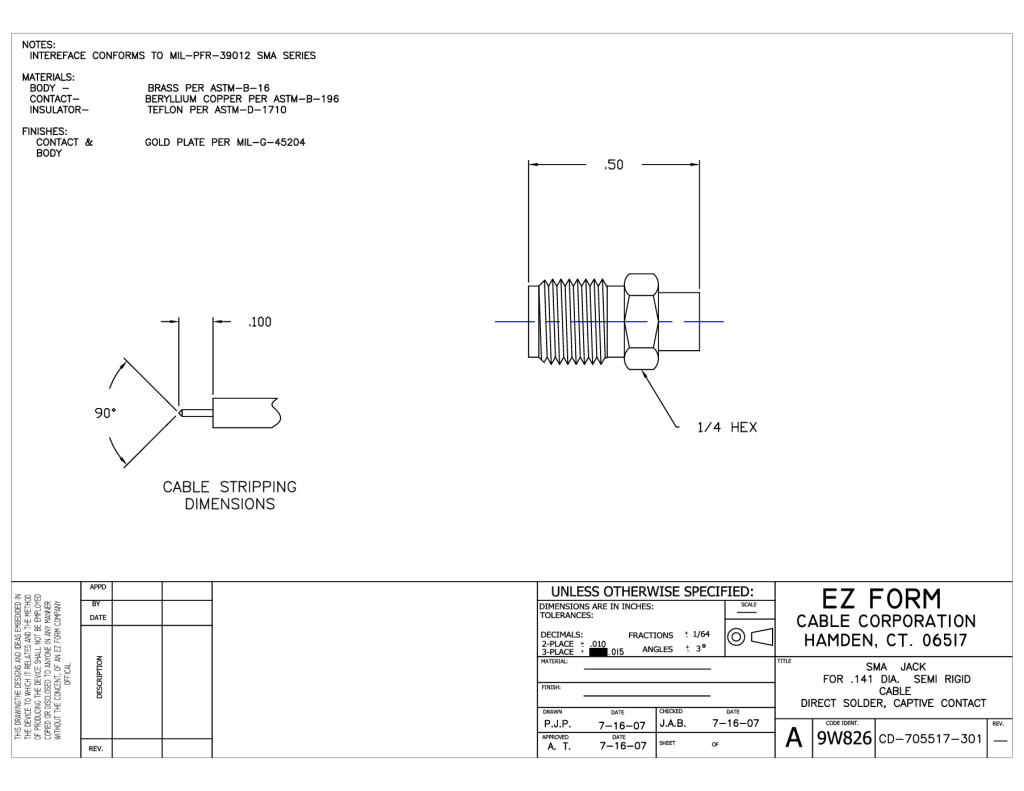

Datasheet

705517-301_cd.pdf
SMA Connector – Straight Jack to .141 Cable-Solder – Captive Contact
Add to Quote
EZ Form Cable
