SMA Connector – 2-Hole Jack to .086 Cable-Solder

705526-001SMA

SMA Jack (Female) to ⌀.086" Cable (Solder), 2-Hole Mount.

Add to Quote

SMA Female, 2 Hole flange mount for EZ-86, RG402 Cable

Specifications

  • Outer Conductor Diameter
    0.0860 in
  • Interface
    SMA
  • Gender
    Jack
  • Orientation
    Straight
  • Mounting Style
    2-Hole
  • Termination Style
    Cable-Solder
  • Frequency
    18 GHz
  • Impedance
    50 Ω

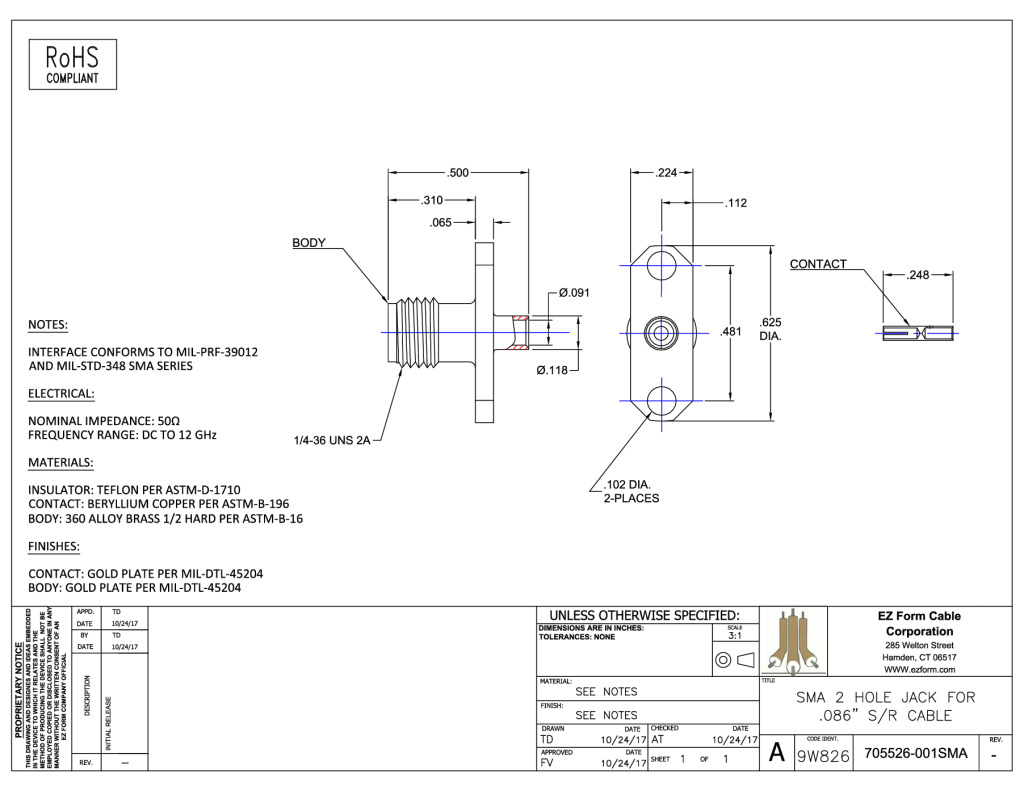

Datasheet

705526-001sma_cd.pdf
SMA Connector – 2-Hole Jack to .086 Cable-Solder
Add to Quote
EZ Form Cable
