SMA Connector – Straight Plug to .141 Cable-Solder – Coupling Nut, Stainless Steel

705533-101

SMA Plug (Male) to ⌀.141" Cable (Solder), Straight Float. With Coupling Nut, Stainless Steel.

Add to Quote
EZ Form Cable - SMB Connector - Straight Plug to .078 Cable-Crimp

Equivalent to Omni Spectra 2001-5003-00

See more:

coupling nut, stainless steel

Specifications

  • Outer Conductor Diameter
    0.1410 in
  • Interface
    SMA
  • Gender
    Plug
  • Orientation
    Straight
  • Mounting Style
    Float
  • Termination Style
    Cable-Solder
  • Frequency
    18 GHz
  • Impedance
    50 Ω

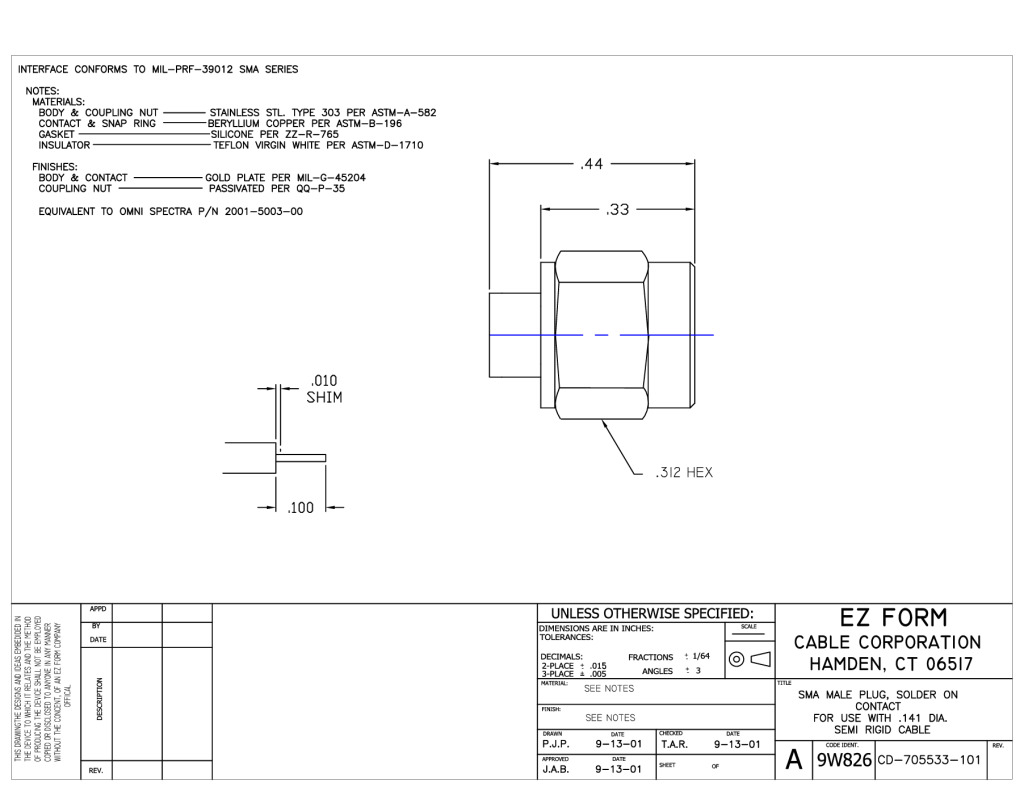

Datasheet

705533-101_cd.pdf
SMA Connector – Straight Plug to .141 Cable-Solder – Coupling Nut, Stainless Steel
Add to Quote
EZ Form Cable
