SMA Connector – Straight Plug to .141 Cable-Solder – Captive Contact

705533-301

SMA Plug (Male) to ⌀.141" Cable (Solder), Straight Float. With Captive Contact.

Add to Quote

SMA Staight Plug, Direct Solder, Captive Contact for RG402, EZ-141 Type Cable

See more:

captive contact

Specifications

  • Outer Conductor Diameter
    0.1410 in
  • Interface
    SMA
  • Gender
    Plug
  • Orientation
    Straight
  • Mounting Style
    Float
  • Termination Style
    Cable-Solder
  • Frequency
    18 GHz
  • Impedance
    50 Ω

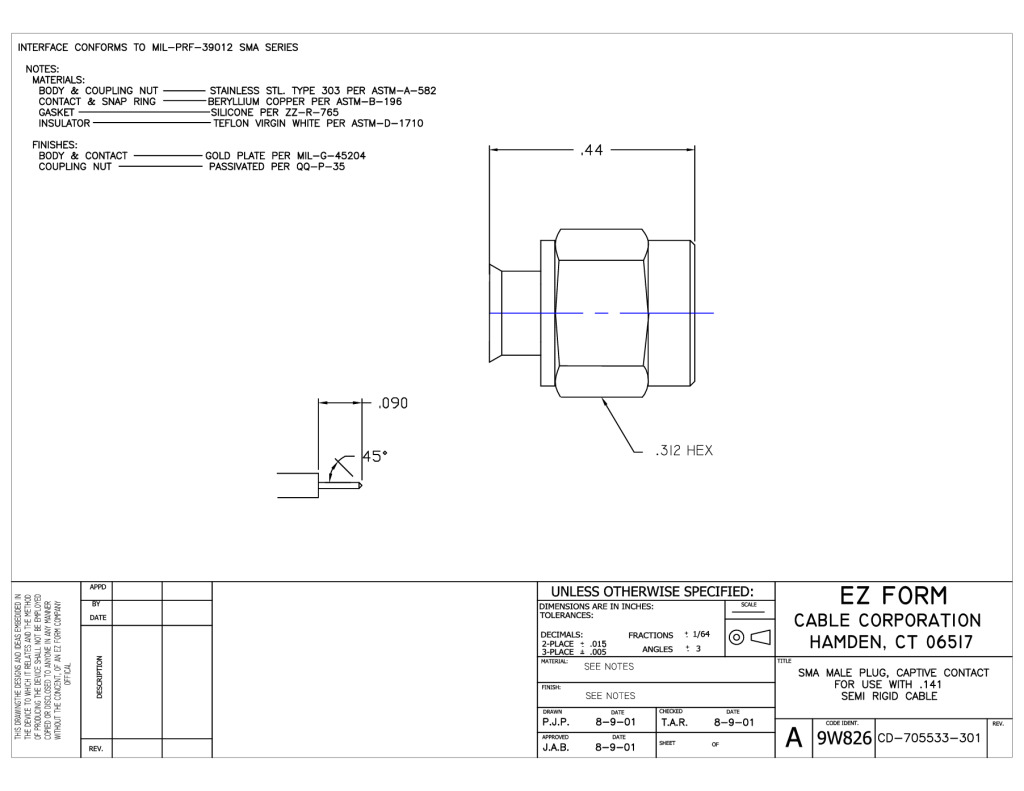

Datasheet

705533-301_cd.pdf
SMA Connector – Straight Plug to .141 Cable-Solder – Captive Contact
