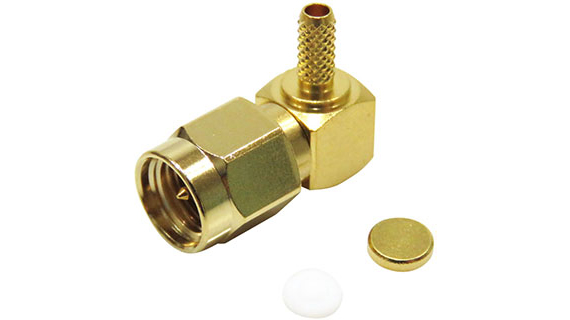

SMA Connector – R/A Plug to .094 Cable-Crimp

705556-002SMA

SMA Plug (Male) to ⌀.094" Cable (Crimp), Right Angle Float.

Add to Quote

SMA R/A Plug, Crimp type for RG316 DS

Specifications

  • Outer Conductor Diameter
    0.0940 in
  • Interface
    SMA
  • Gender
    Plug
  • Orientation
    Right Angle
  • Mounting Style
    Float
  • Termination Style
    Cable-Crimp
  • Frequency
    12.4 GHz
  • Impedance
    50 Ω

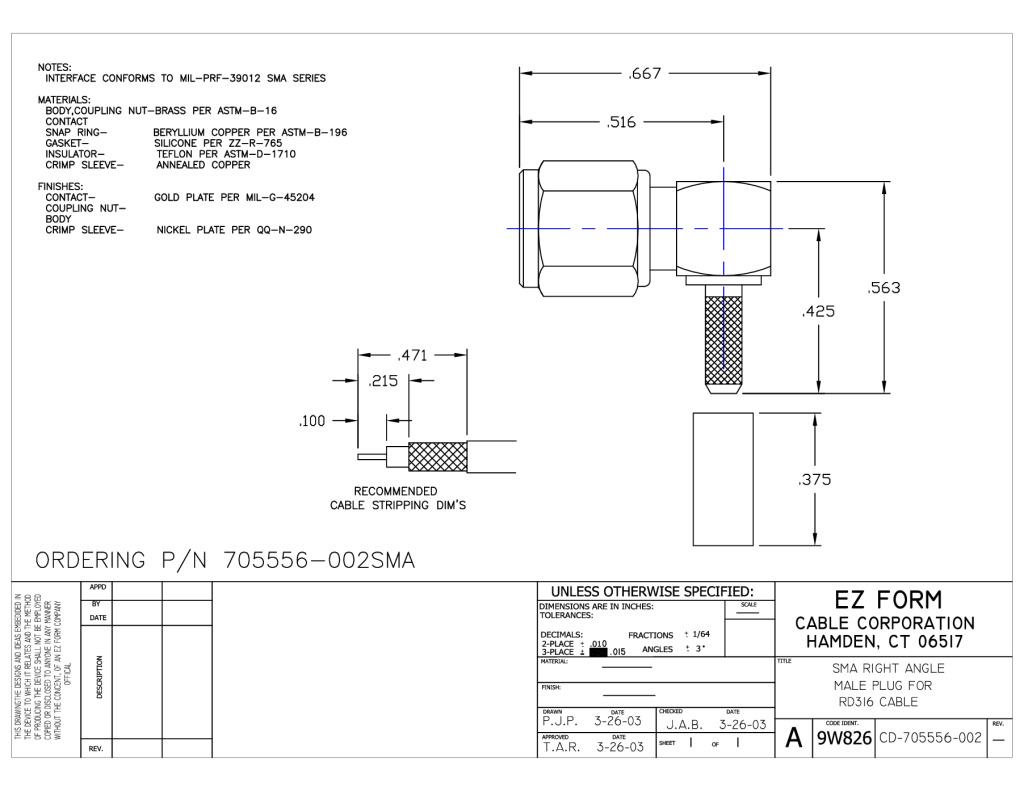

Datasheet

705556-002sma_cd.pdf
SMA Connector – R/A Plug to .094 Cable-Crimp
Add to Quote
