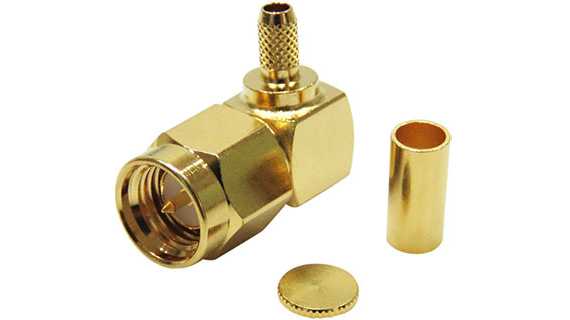

SMA Connector – R/A Plug to .146 Cable-Crimp

705558-001SMA

SMA Plug (Male) to ⌀.146" Cable (Crimp), Right Angle Float.

Add to Quote

SMA R/A Male Crimp Type for RG58

Specifications

  • Outer Conductor Diameter
    0.1460 in
  • Interface
    SMA
  • Gender
    Plug
  • Orientation
    Right Angle
  • Mounting Style
    Float
  • Termination Style
    Cable-Crimp
  • Frequency
    12.4 GHz
  • Impedance
    50 Ω

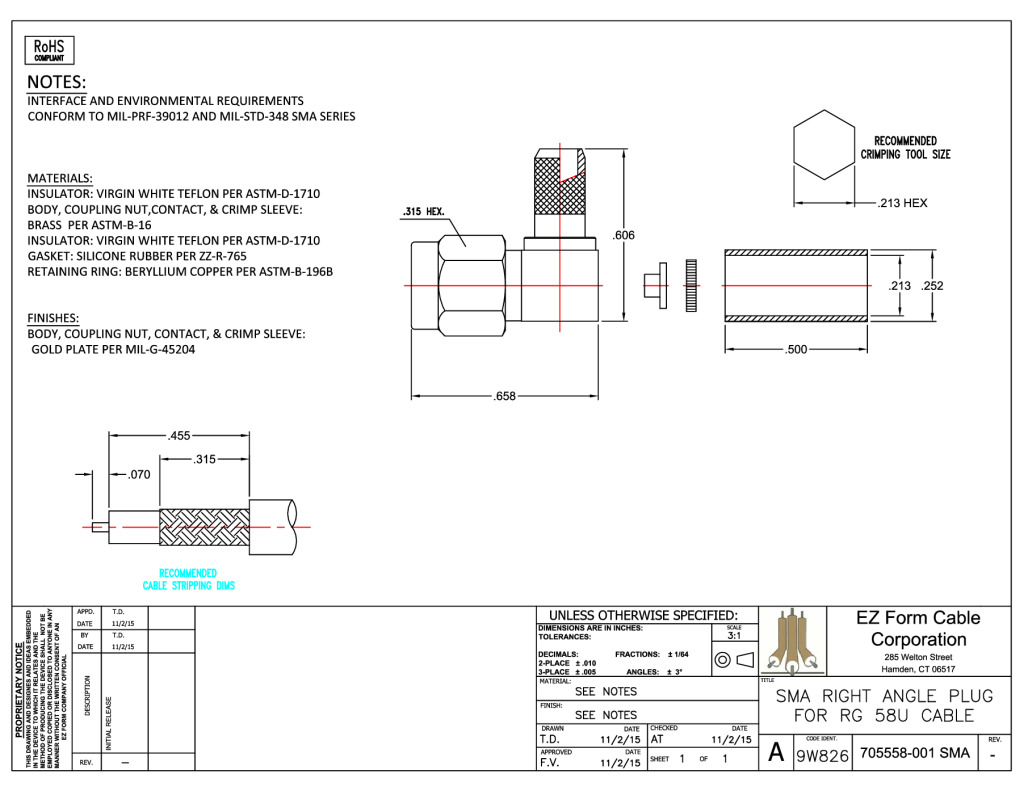

Datasheet

705558-001sma_cd.pdf
SMA Connector – R/A Plug to .146 Cable-Crimp
Add to Quote
