SMA Connector – Straight Jack to .094 Cable-Crimp

705561-002SMA

SMA Jack (Female) to ⌀.094" Cable (Crimp), Straight Float.

Add to Quote

SMA Straight Jack, Crimp Type for RG316 DS

Specifications

  • Outer Conductor Diameter
    0.0940 in
  • Interface
    SMA
  • Gender
    Jack
  • Orientation
    Straight
  • Mounting Style
    Float
  • Termination Style
    Cable-Crimp
  • Frequency
    12 GHz
  • Impedance
    50 Ω

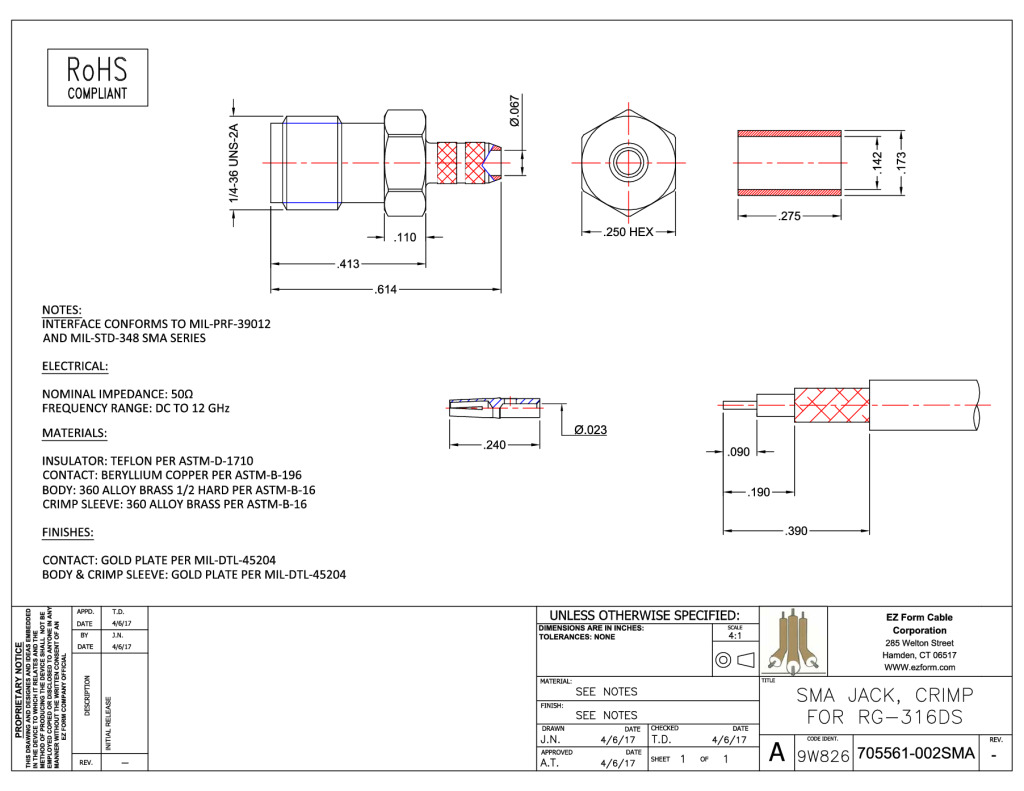

Datasheet

705561-002sma_cd.pdf
SMA Connector – Straight Jack to .094 Cable-Crimp
Add to Quote
