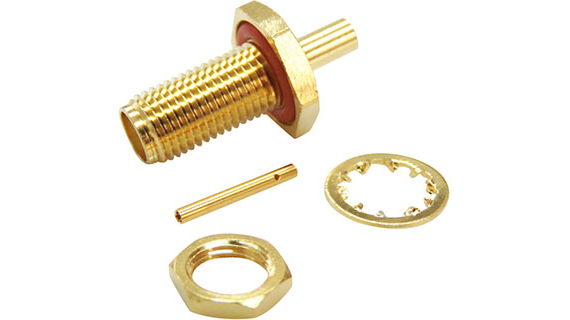

SMA Connector – Bulkhead Jack to .078 Cable-Crimp – O-Ring

705566-001SMA

SMA Jack (Female) to ⌀.078" Cable (Crimp), Bulkhead Mount. With O-Ring.

Add to Quote

SMA Bulkhead Jack, For RG-174, RG-316 Cable

See more:

o-ring

Specifications

  • Outer Conductor Diameter
    0.0780 in
  • Interface
    SMA
  • Gender
    Jack
  • Orientation
    Straight
  • Mounting Style
    Bulkhead
  • Termination Style
    Cable-Crimp
  • Frequency
    12 GHz
  • Impedance
    50 Ω

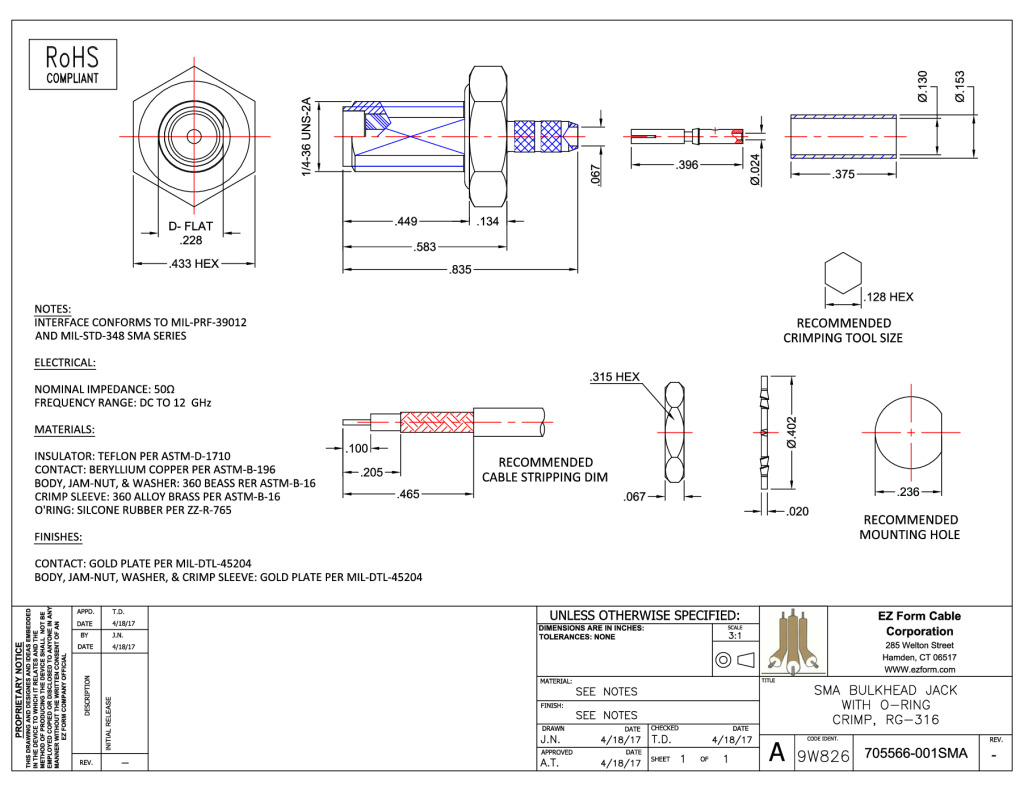

Datasheet

705566-001sma_cd.pdf
SMA Connector – Bulkhead Jack to .078 Cable-Crimp – O-Ring
Add to Quote
