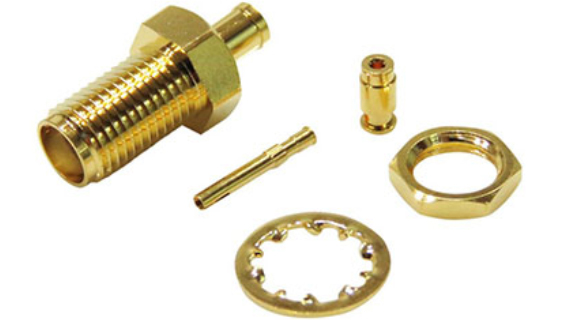

SMA Connector – Bulkhead Jack to .094 Cable-Crimp – Flat Gasket

705566-102SMA

SMA Jack (Female) to ⌀.094" Cable (Crimp), Bulkhead Mount. With Flat Gasket.

Add to Quote

SMA Straight Bulkhead Female for RG316 DS

See more:

flat gasket

Specifications

  • Outer Conductor Diameter
    0.0940 in
  • Interface
    SMA
  • Gender
    Jack
  • Orientation
    Straight
  • Mounting Style
    Bulkhead
  • Termination Style
    Cable-Crimp
  • Frequency
    12.4 GHz
  • Impedance
    50 Ω

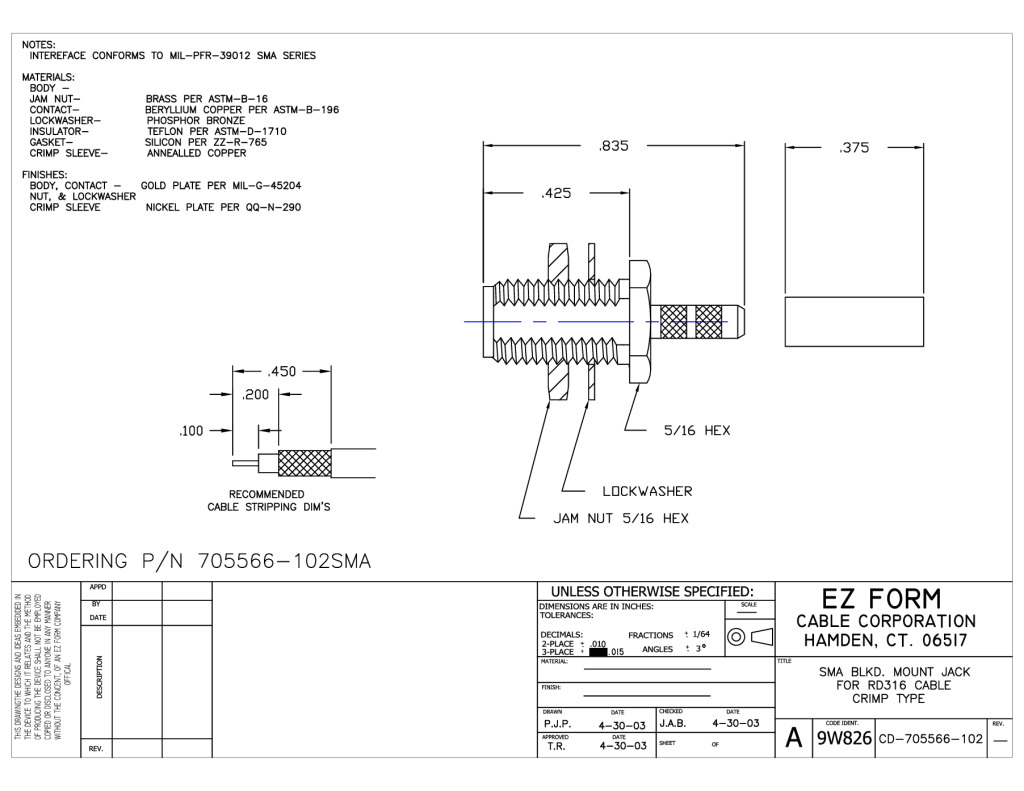

Datasheet

705566-102sma_cd.pdf
SMA Connector – Bulkhead Jack to .094 Cable-Crimp – Flat Gasket
Add to Quote
EZ Form Cable
