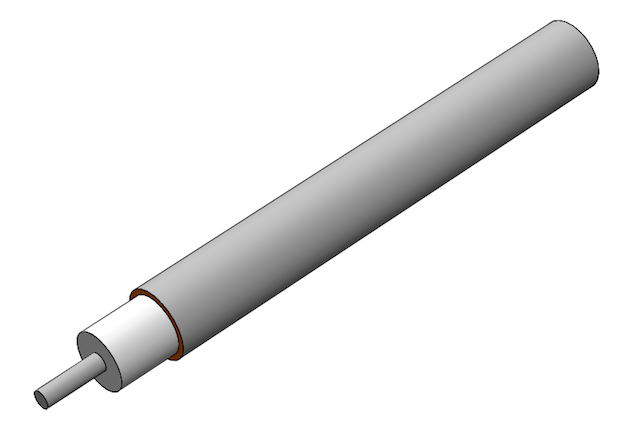

.141 Coaxial Cable – 50 Ω MIL-DTL-17 Tin-Plated Copper – Soft Jacket

M17/130-00005

© EZ Form Cable Inc. All rights reserved.

⌀.141" MIL-DTL-17 Tin-Plated Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω. Soft Jacket Variant.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0362 in
  • Dielectric Diameter
    0.1175 in
  • Outer Conductor Diameter
    0.1410 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • Outer Conductor Plating Material
    Tin
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −40 °C
  • Maximum Temperature
    +125 °C
  • Inside Bend Radius (Minimum)
    0.075 in
  • Weight
    3.51 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    5000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1900 VRMS
    max
  • Maximum Operating Frequency
    20 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
8 db
1.0 GHz
12 db
5.0 GHz
29 db
10.0 GHz
45 db
18.0 GHz
65.5 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
600 W
1.0 GHz
450 W
5.0 GHz
180 W
10.0 GHz
120 W
18.0 GHz
83 W

.141 Coaxial Cable – 50 Ω MIL-DTL-17 Tin-Plated Copper – Soft Jacket

M17/130-00005

⌀.141" MIL-DTL-17 Tin-Plated Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω. Soft Jacket Variant.

feet
Add to Quote
Datasheet

EZ Form offers 27 copper and aluminum jacketed semi-rigid cables qualified to MIL-DTL-17. These cables meet or exceed the Mil specification and are available in a variety of sizes and finishes.

To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.
