.0865 Coaxial Cable – 50 Ω MIL-DTL-17 Tin-Plated Copper – Non-Magnetic, Soft Jacket

M17/133-00009

© EZ Form Cable Inc. All rights reserved.

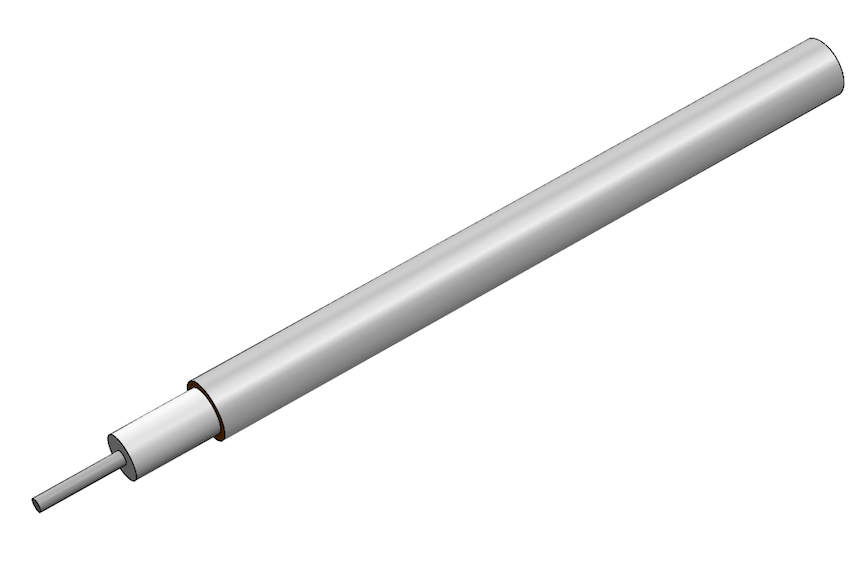

⌀.0865" MIL-DTL-17 Tin-Plated Copper Outer Conductor, SPC Center Conductor, PTFE Dielectric, 50 Ω. Non-Magnetic, Soft Jacket Variant.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0201 in
  • Dielectric Diameter
    0.0660 in
  • Outer Conductor Diameter
    0.0865 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • Outer Conductor Plating Material
    Tin
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −40 °C
  • Maximum Temperature
    +125 °C
  • Inside Bend Radius (Minimum)
    0.050 in
  • Weight
    1.57 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.5 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    5000 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1500 VRMS
    max
  • Maximum Operating Frequency
    20 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
15 db
1.0 GHz
22 db
5.0 GHz
50 db
10.0 GHz
80 db
18.0 GHz
110 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
180 W
1.0 GHz
130 W
5.0 GHz
54 W
10.0 GHz
35 W
18.0 GHz
24 W
