.116 Coaxial Cable – Semi-Rigid Tin-Plated Aluminum – Low-Loss, Non-Magnetic, Tape-Wrapped
EZ-118-AL-TP
© EZ Form Cable Inc. All rights reserved.

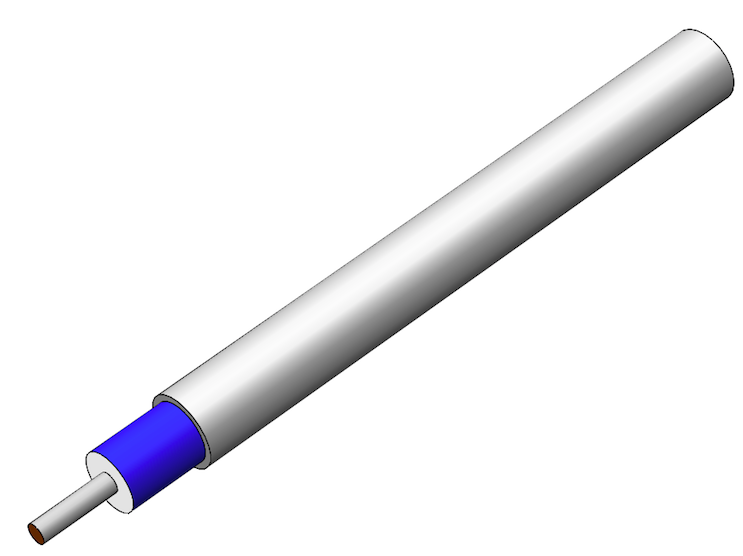

⌀.116" Semi-Rigid Tin-Plated Aluminum Outer Conductor, SPC Center Conductor, PTFE Tape Dielectric. Low-Loss, Non-Magnetic, Tape-Wrapped.

Specifications
Dimensions
-
Center Conductor Diameter0.0320 in
-
Dielectric Diameter0.0950 in
-
Outer Conductor Diameter0.1160 in
Materials
-
Center Conductor MaterialSPC
-
Dielectric MaterialPTFE Tape
-
Outer Conductor MaterialAluminum
-
Outer Conductor Plating MaterialTin
-
RoHS CompliantYes
Mechanical Characteristics
-
Minimum Temperature−55 °C
-
Maximum Temperature+200 °C
-
Inside Bend Radius (Minimum)0.380 in
-
Weight1.30 lbsper 100 ft
Electrical Characteristics
-
Nominal Impedance50.0 Ω
-
Nominal Impedance Margin±1.0 Ω
-
Velocity of Propagation80.00%
-
Shielding Effectiveness>165 db
-
Voltage Withstanding3500 VRMS@ 60 Hz
-
Continuous Working Voltage1400 VRMSmax
-
Maximum Operating Frequency47 GHz
Attenuation
Frequency | db / 100 Ft Typical |
---|---|
0.5 GHz | 9.2 db |
1.0 GHz | 13 db |
5.0 GHz | 30 db |
10.0 GHz | 43.6 db |
18.0 GHz | 60 db |
26.5 GHz | 74.5 db |
40.0 GHz | 100 db |
Power
Frequency | Watts CW @ 20 °C (Max) |
---|---|
0.5 GHz | 650 W |
1.0 GHz | 480 W |
5.0 GHz | 190 W |
10.0 GHz | 130 W |
18.0 GHz | 100 W |
26.5 GHz | 67 W |
40.0 GHz | 37 W |
.116 Coaxial Cable – Semi-Rigid Tin-Plated Aluminum – Low-Loss, Non-Magnetic, Tape-Wrapped
EZ-118-AL-TP
⌀.116" Semi-Rigid Tin-Plated Aluminum Outer Conductor, SPC Center Conductor, PTFE Tape Dielectric. Low-Loss, Non-Magnetic, Tape-Wrapped.

EZ Form aluminum jacketed semi-rigid WP cables feature a tape-wrapped dielectric, that facilitates lower attenuation and higher operating temperatures when compared to solid PTFE semi-rigid cables and also has the added advantage of being 40% lighter than their copper jacketed counterparts.
To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.
