.023 Coaxial Cable – 50 Ω Semi-Rigid Copper

EZ-20

© EZ Form Cable Inc. All rights reserved.

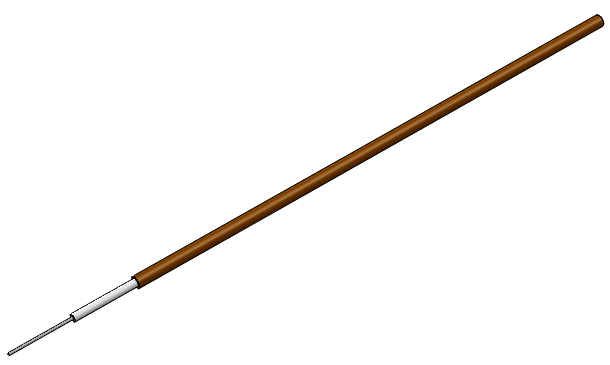

⌀.023" Semi-Rigid Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0050 in
  • Dielectric Diameter
    0.0150 in
  • Outer Conductor Diameter
    0.0230 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +125 °C
  • Inside Bend Radius (Minimum)
    0.050 in
  • Weight
    0.10 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±2.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    750 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    300 VRMS
    max
  • Maximum Operating Frequency
    260 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
53 db
1.0 GHz
75 db
5.0 GHz
170 db
10.0 GHz
244 db
18.0 GHz
332 db
26.5 GHz
409 db
40.0 GHz
511 db
50.0 GHz
577 db
65.0 GHz
668 db
90.0 GHz
803 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
17 W
1.0 GHz
12 W
5.0 GHz
5.5 W
10.0 GHz
3.8 W
18.0 GHz
2.8 W
26.5 GHz
2.3 W
40.0 GHz
1.8 W
50.0 GHz
1.6 W
65.0 GHz
1.4 W
90.0 GHz
1.2 W

.023 Coaxial Cable – 50 Ω Semi-Rigid Copper

EZ-20

⌀.023" Semi-Rigid Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric, 50 Ω.

feet
Add to Quote
Datasheet

Copper jacketed semi-rigid cables manufactured by EZ Form offer 100% shielding and are easily formed into custom shapes using standard tooling. A wide variety of standard connectors are available for these cables.

To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0050 in
  • Dielectric Diameter
    0.0150 in
  • Outer Conductor Diameter
    0.0230 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +125 °C
  • Inside Bend Radius (Minimum)
    0.050 in
  • Weight
    0.10 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±2.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    750 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    300 VRMS
    max
  • Maximum Operating Frequency
    260 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
53 db
1.0 GHz
75 db
5.0 GHz
170 db
10.0 GHz
244 db
18.0 GHz
332 db
26.5 GHz
409 db
40.0 GHz
511 db
50.0 GHz
577 db
65.0 GHz
668 db
90.0 GHz
803 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
17 W
1.0 GHz
12 W
5.0 GHz
5.5 W
10.0 GHz
3.8 W
18.0 GHz
2.8 W
26.5 GHz
2.3 W
40.0 GHz
1.8 W
50.0 GHz
1.6 W
65.0 GHz
1.4 W
90.0 GHz
1.2 W
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
53 db
1.0 GHz
75 db
5.0 GHz
170 db
10.0 GHz
244 db
18.0 GHz
332 db
26.5 GHz
409 db
40.0 GHz
511 db
50.0 GHz
577 db
65.0 GHz
668 db
90.0 GHz
803 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
17 W
1.0 GHz
12 W
5.0 GHz
5.5 W
10.0 GHz
3.8 W
18.0 GHz
2.8 W
26.5 GHz
2.3 W
40.0 GHz
1.8 W
50.0 GHz
1.6 W
65.0 GHz
1.4 W
90.0 GHz
1.2 W
