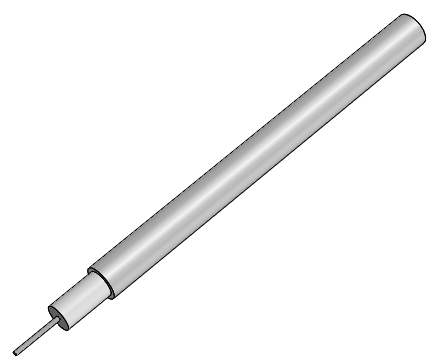

.0865 Coaxial Cable – Semi-Rigid Tin-Plated Copper – Special 75 Ω

EZ-86-75-TP

© EZ Form Cable Inc. All rights reserved.

⌀.0865" Semi-Rigid Tin-Plated Copper Outer Conductor, SPCW Center Conductor, PTFE Dielectric. Special 75 Ω Impedance.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0113 in
  • Dielectric Diameter
    0.0660 in
  • Outer Conductor Diameter
    0.0865 in

Materials

  • Center Conductor Material
    SPCW
  • Dielectric Material
    PTFE
  • Outer Conductor Material
    Copper
  • Outer Conductor Plating Material
    Tin
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +125 °C
  • Inside Bend Radius (Minimum)
    0.125 in
  • Weight
    1.40 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    75.0 Ω
  • Nominal Impedance Margin
    ±2.0 Ω
  • Velocity of Propagation
    69.50%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    2500 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1200 VRMS
    max
  • Maximum Operating Frequency
    67 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
15 db
1.0 GHz
21 db
5.0 GHz
48.4 db
10.0 GHz
72 db
18.0 GHz
102 db
26.5 GHz
129.5 db
40.0 GHz
168 db
50.0 GHz
194 db
65.0 GHz
230 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
128 W
1.0 GHz
91 W
5.0 GHz
41 W
10.0 GHz
30 W
18.0 GHz
21 W
26.5 GHz
17 W
40.0 GHz
13 W
50.0 GHz
12 W
65.0 GHz
10 W
