SMA Connector – R/A Plug to .141 Cable-Solder – High-Frequency

705516-903

SMA Plug (Male) to ⌀.141" Cable (Solder), Right Angle Float. High-Frequency Variant.

Add to Quote

SMA R/A Plug, Swept Contact Design, for EZ-141, RG402 Cable

See more:

high-frequency

Specifications

  • Outer Conductor Diameter
    0.1410 in
  • Interface
    SMA
  • Gender
    Plug
  • Orientation
    Right Angle
  • Mounting Style
    Float
  • Termination Style
    Cable-Solder
  • Frequency
    18 GHz
  • Impedance
    50 Ω

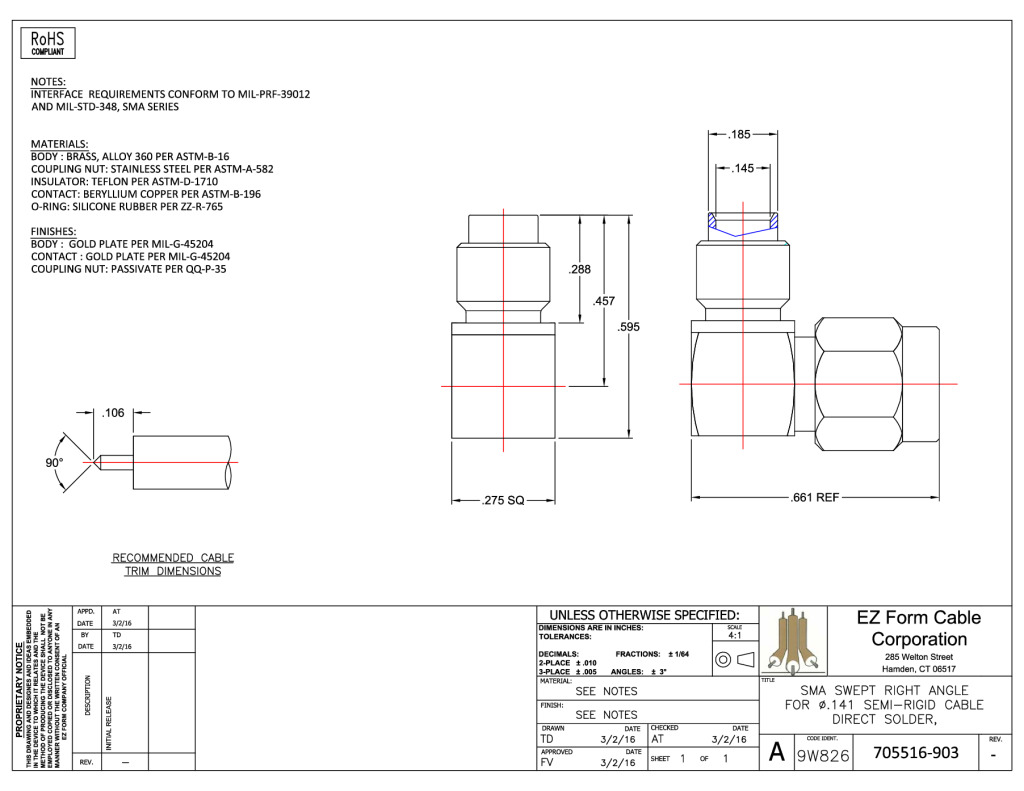

Datasheet

705516-903_cd.pdf
SMA Connector – R/A Plug to .141 Cable-Solder – High-Frequency
