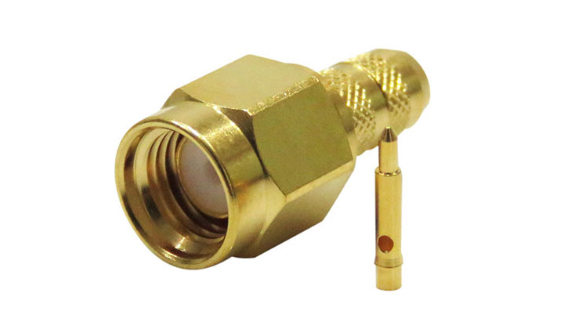

SMA Connector – Straight Plug to .141 Cable-Crimp

705548-001SMA

SMA Plug (Male) to ⌀.141" Cable (Crimp), Straight Float.

Add to Quote

SMA Male, Crimp Type For RG141, RG58 Cable

Specifications

  • Outer Conductor Diameter
    0.1410 in
  • Interface
    SMA
  • Gender
    Plug
  • Orientation
    Straight
  • Mounting Style
    Float
  • Termination Style
    Cable-Crimp
  • Frequency
    12.4 GHz
  • Impedance
    50 Ω

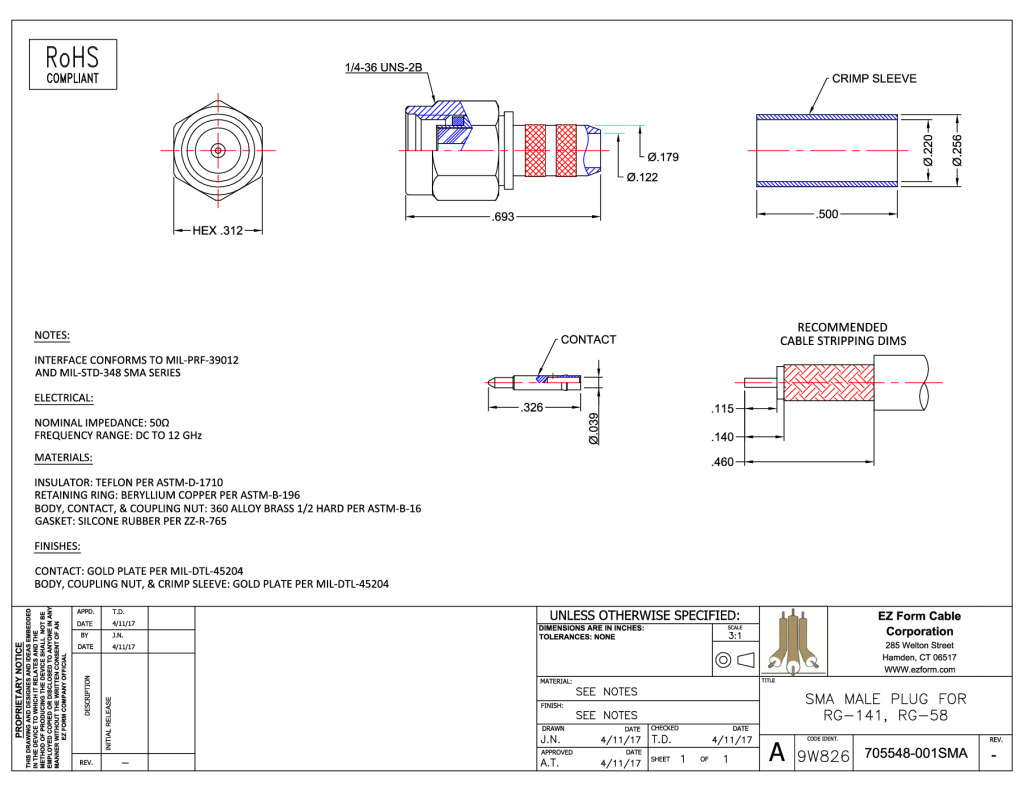

Datasheet

705548-001sma_cd.pdf
