Type N Connector – Bulkhead Jack to .086 Cable-Solder – Captive Contact

708938-405N

Type N Jack (Female) to ⌀.086" Cable (Solder), Bulkhead Mount. With Captive Contact.

Add to Quote

Type N Bulkhead Jack, Direct Solder for EZ-86, RG405 Cable

See more:

captive contact

Specifications

  • Outer Conductor Diameter
    0.0860 in
  • Interface
    N
  • Gender
    Jack
  • Orientation
    Straight
  • Mounting Style
    Bulkhead
  • Termination Style
    Cable-Solder
  • Frequency
    11 GHz
  • Impedance
    50 Ω

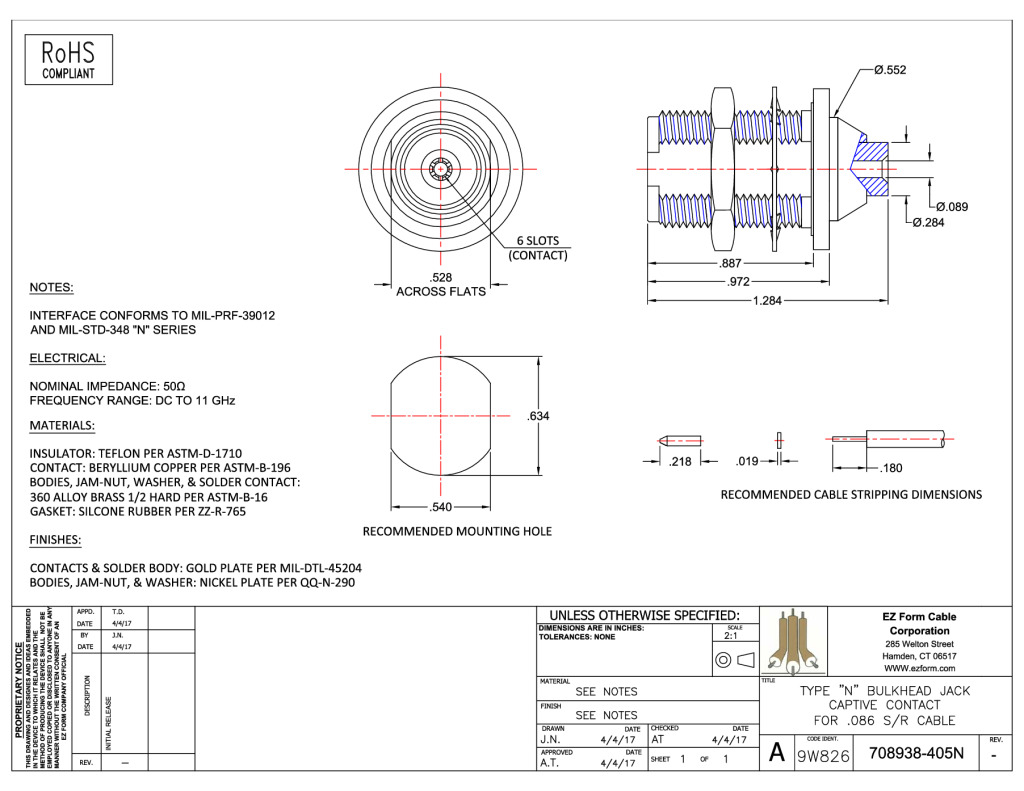

Datasheet

708938-405n_cd.pdf
Type N Connector – Bulkhead Jack to .086 Cable-Solder – Captive Contact
